220V AC-100A ΨΗΦΙΑΚΟ ΒΟΛΤΟΜΕΤΡΟ-ΑΜΠΕΡΟΜΕΤΡΟ & BATOMETRO

220V AC-100A ΨΗΦΙΑΚΟ ΒΟΛΤΟΜΕΤΡΟ-ΑΜΠΕΡΟΜΕΤΡΟ & BATOMETRO

Features and specifications:

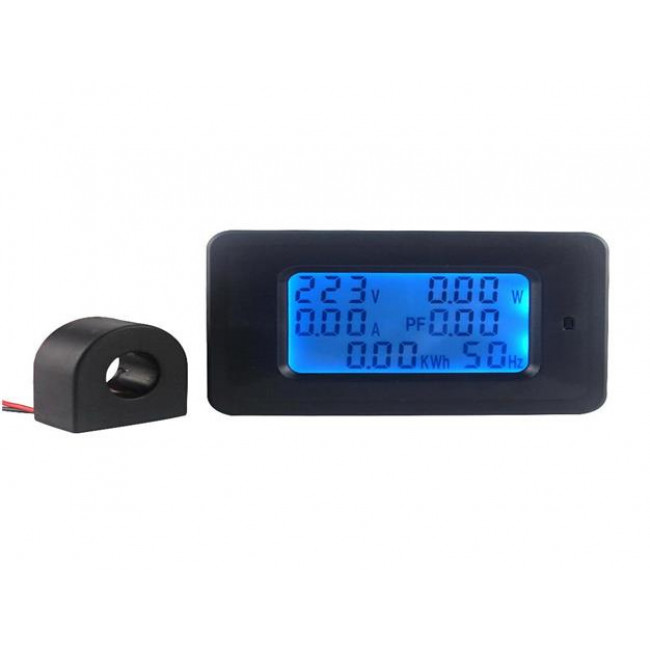

This combo meter is designed to monitor AC power. It combines several functions into one.

-Voltage: 85-250VAC

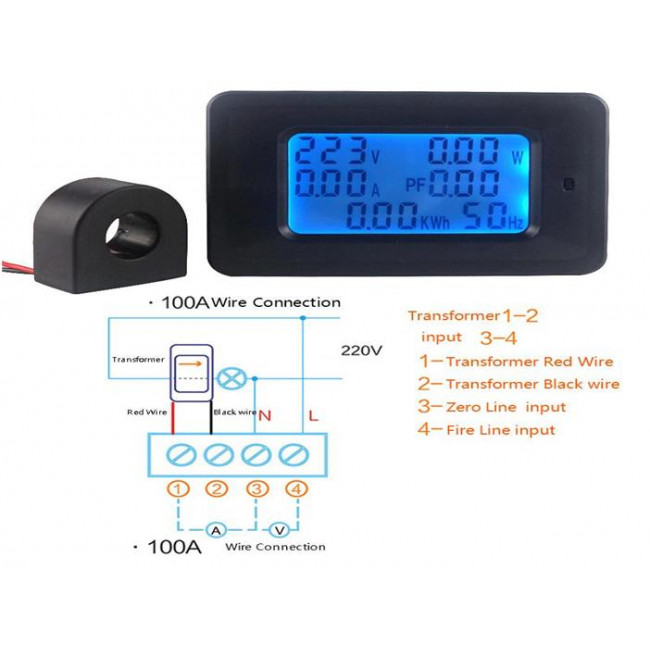

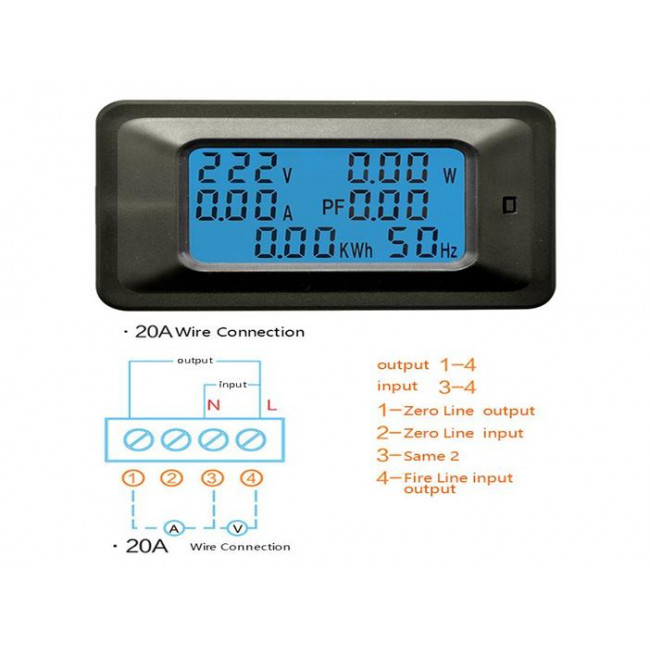

-Current: 0.01-20A / 100A( Please choose the range you need, if you choose 100A, please connect it as 100A wire connection, no matter what current you test )

-Energy:5-digits, 0.01 99999KWH

- Compatible frequency 50/60HZ

-Built-in current sensor

-Power Supply: 85-250Vac (self-powered)

-Voltage Range: 85V-250V

-Current Range:0.01-20A /100A

-Resolution:1V, 0.01A, 0.01W, 0.01kWh

-Display Type: LCD

-Dimensions: 84 x 46 x 26 mm

Functions:

1. Electrical parameter measurement function (voltage, current, active power, power).

2. Overload alarm function (over power alarm threshold, the back-light and power flicker tips).

3. The power alarm threshold preset function (can set up your own power alarm threshold).

4. The power button clear function.

5. Power-down data storage function.

6. Large-screen LCD screen full display function (display voltage, current, active power, power).

7. Backlight.
