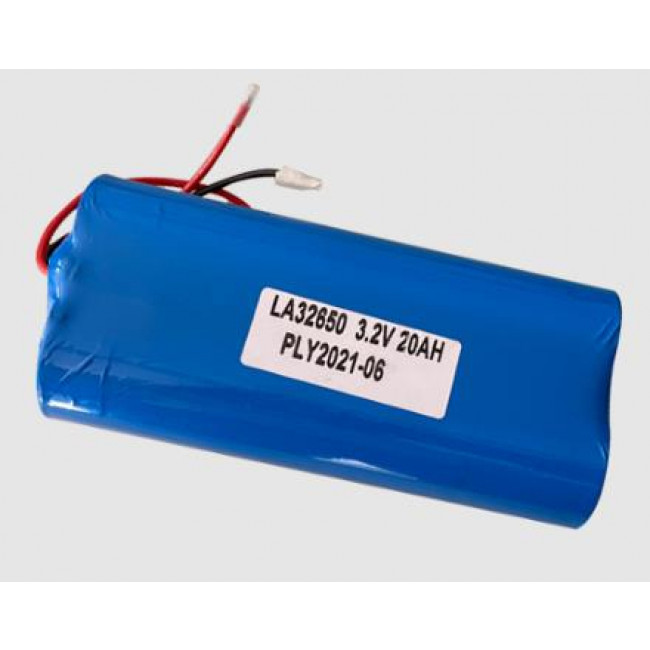

3.2V 20000mAh 32650 ΜΠΑΤΑΡΙΑ ΙΟΝΤΩΝ ΛΙΘΙΟΥ ΠΑΚ

Cell:

LiFePO4 32700, can replace LiFePO4 32650 with same size but higher capacity

Standard Voltage:

3.2 V

Standard Capacity:

5000 mAh (at 0.2C discharge)

Charging Condition:

• Standard charge: 1200mA / 0.2C Constant Current Charge to 3.65±0.05V
• Then with Constant Voltage at 3.65V , charge until 60mA / 0.01C cut off
• Maximum charge current: 3000mA / 0.5C

Discharging Condition:

• Cut-off Voltage: 2.0V
• Standard discharge current: 1200mA/0.2C
• Max. Continuous Discharge Current: 18A / 3C
• Pulse Discharge Current: 30A, 5s / 5C

Operation Temperature:

• Charging:    0 - 55 oC
• Discharging:  - 10 - 60 oC

Cycle Performance:

• ≥80% Nominal Capacity after 2000 times standard charge and discharge

Dimensions(DxH) (max with tab):

32±0.3mm (1.26") x 70.5±0.4mm (2.78")
