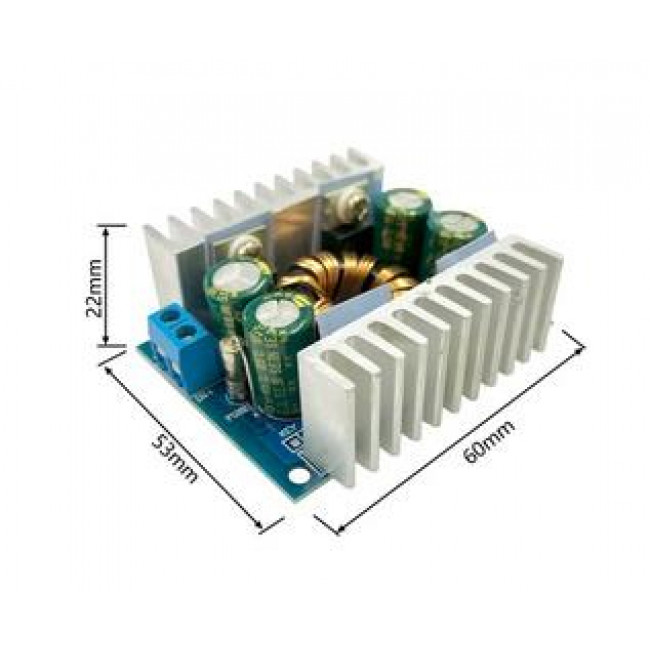

DC DC AUTOMATIC ADJUSTABLE STEP UP STEP DOWN CONVERTER 5A

DC DC AUTOMATIC ADJUSTABLE STEP UP STEP DOWN CONVERTER 5A



Specification:

Type: Non-isolated synchronous rectification automatically step up/down module

Input Voltage: DC5-30V

Input Current: 8A, (MAX) 10A, (within 6A for long-term work)

Quiescent Current: 4mA (there will be deviation when working voltage is different)

Output Voltage: 1.25-30V continuously adjustable

Output Current: 10A (MAX) (long-term natural cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65?

Constant Current Output Range: 0.2-10A

Operating Temperature: -40? to +85?

Frequency: 150KHz

Conversion Efficiency: Typical 91%, maximum 93%

Over Current Protection: Yes

Short Circuit Protection: Yes (current limiting protection)

Over Temperature Protection: Yes (automatic reduce output voltage)

Reverse Input Protection: No, please connect to a diode in series at input if needed

Output Flow Back Protection: Yes, do not need to add the diode when used for charging.

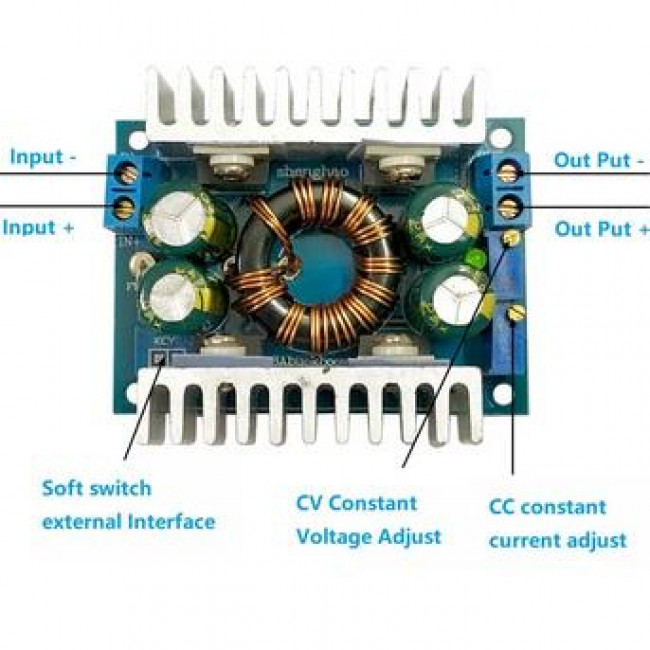

Wiring Method: Terminal block output, (IN is input, OUT is output)

Weight: 70g / 2.5oz (approx.)
