Input voltage: 12-32V input (for wide input voltage range of applications)
Input Current: 16A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 15mA (12V-liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-46V continuously adjustable
Output Current: 8A MAX than 4A please enhance heat dissipation (input, output pressure related to the pressure the greater the output current is smaller)
Output power: natural cooling 90W, enhance heat dissipation 150W
Working temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: (Enter the 15A fuse)
Input reverse polarity protection: Yes
Connection: Terminal-free welding output, with housing for welding output. (V-IN is input, V-OUT output)
Color: Silver

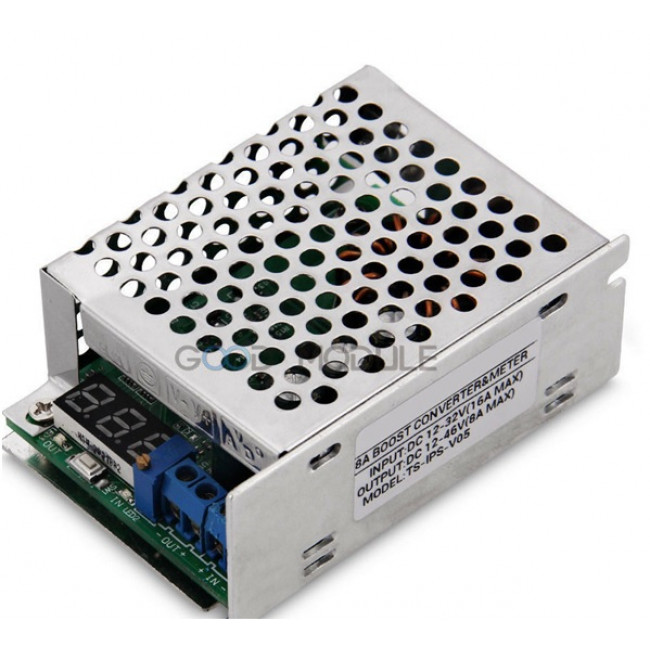

STEP UP MODULE IN 12-32V OUT 12-46V WITH DISPLAY 8A 150W is available for purchase in increments of 1
