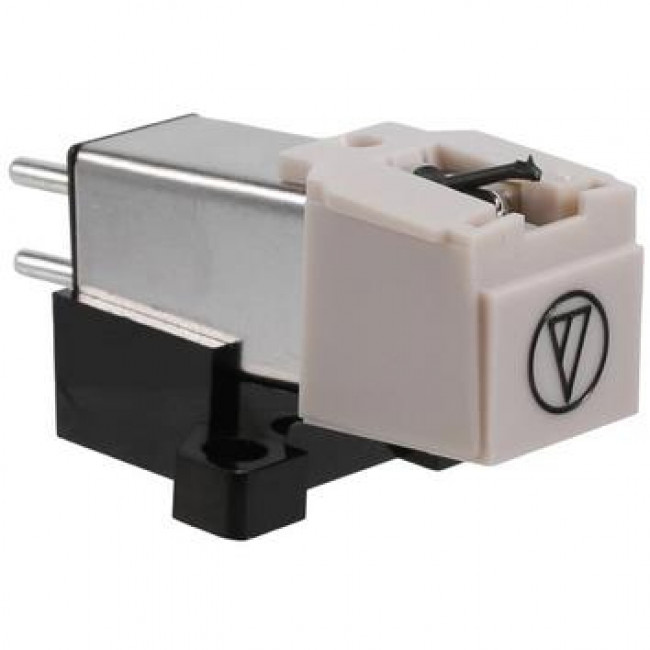

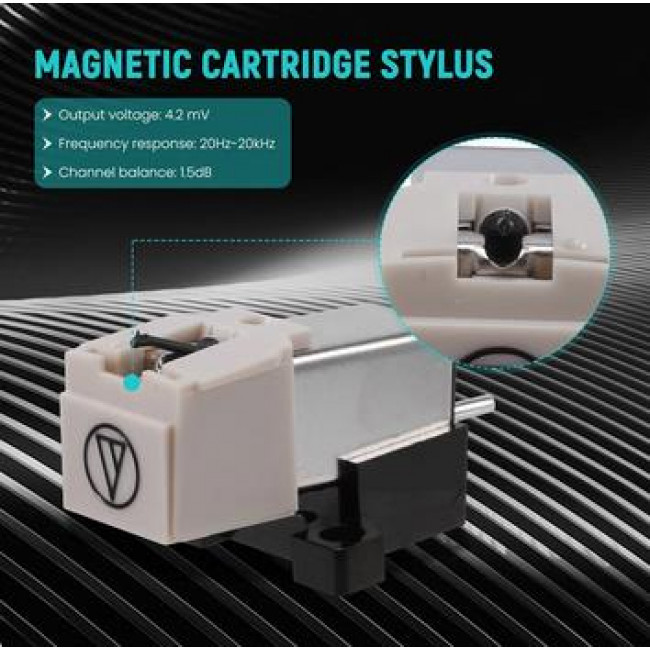

AT 3600 ΟΕΜ AUDIO TECHNICA ΚΕΦΑΛΗ ΜΕ ΒΕΛΟΝΑ ΠΙΚΑΠ

ΑΝΤΑΛΛΑΚΤΙΚΗ ΚΕΦΑΛΗ ΠΙΚΑΠ ΓΙΑ AT 3600 AUDIO TECHNICA



AT91 parameters

Frequency response: 20-20000Hz

Output voltage: 3.5MV (1khz, 5cm/sec)

Channel separation: 18dB (1khz)

Output balance: 2.5DB (1khz)

Acupuncture pressure: 1.5-2.5g (2.0g standard)

Coil impedance: 2.8kΩ (1khz)

DC resistance: 410Ω

Recommended load impedance: 47kΩ

Recommended load capacitance: 100-200pF

Coil inductance: 400mH (1khz)

Static compliance: 200x10-6 cm/dyne

Dynamic compliance: 6.5x10-6 cm/dyne (100hz)

Stylus: Jointed tapered tip

Stylus tip curvature radius: 0.6mil

Needle arm: carbon fiber rod

Vertical tracking angle: 20°

Size: 17.0*16.8*31.0mm (height*width*depth)
