Specifications:

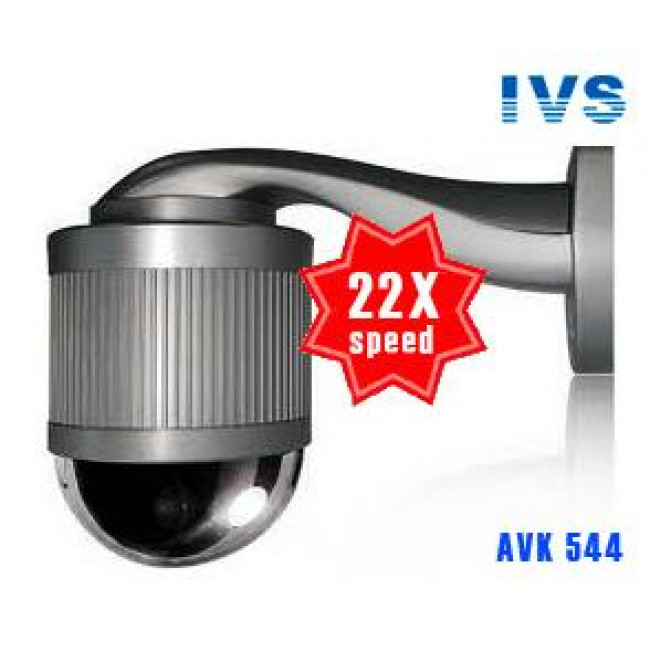

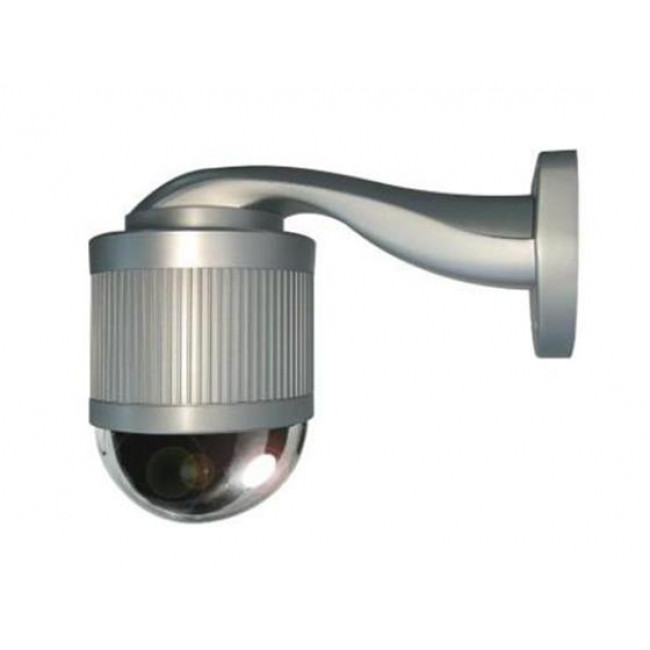

Model: AVK544ZP/22X
Signal System NTSC or PAL
Pick-up Element 1/4” Sony Color Super HAD CCD image sensor
Number of Pixels 768(H)* x 494(V)
, 752(H)* x 582(V)
Resolution High Resolution
Min. Illumination 0.6 Lux, F1.6
S/N Ratio More than 48dB (AGC off)
Video Output 1.0 Vp-p. 75W
BLC ON/OFF
Gain Control Low, Medium & High/Off
Sharpness Auto, Low, Medium, High
White Balance Auto, Indoor 1, Indoor 2, Sun, Cloudy
* Indoor1 = 9000K; Indoor2 = 3000K;
Sun = 5500K; Cloudy = 7000K
Camera Title 10 characters or symbols
Preset Points and Sequence Total 8 groups, 256 programmable preset points
* The sequence of all the preset points will follow the
order of the minimal panning route.
Auto Tracking Yes
Baud Rate 9600
LENS: Focal Length f3.9 ~ 85.9mm
LENS: F-number F1.6(Wide) ~ 3.7(Tele)
LENS: Viewing Angle 4° ~ 60°
LENS: Auto Electronic Shutter 1/60 (1/50) to 1/100,000 sec
LENS: Auto Focus Always, PTZ, Z Only, P Only
MECHANISM: Pan Range 360°
MECHANISM: Pan Speed 360°/1 sec
* The pan speed can be adjusted according to the
different pan speed mode.
MECHANISM: Tilt Range 90°
MECHANISM: Tilt Speed 0° ~ 90° under 1 sec
MECHANISM: Zoom Ratio 22 x optical zoom
MECHANISM: Zoom Speed Approx. 7s (Tele ~ Wide)
IP Rating IP66
Operating Temperature -20° ~ 40°C
Storage Temperature 0° ~ 70°C
Power Source (±10%) 12v DC
Current Consumption 1.5A
Dimensions 323(W) x 339(H) mm (Bracket included)
Weight 1.2kg
