GENERAL
Signal System : NTSC or PAL
Pick-up Element : 1/4" Sony Color Super HAD CCD image sensor
Number of Pixels : 768(H)*494(V) / 752(H)*582(V)
Resolution : High Resolution
Min. Illumination : 0.6 Lux / F1.6
S/N Ratio : More than 48dB (AGC off)
Video Output : 1.0 Vp-p. 75Ω
BLC : On / Off
Gain Control : Low, Medium & High / Off
Sharpness : Auto / Low / Medium / High
White Balance : Auto / Indoor 1 / Indoor 2 / Sun / Cloudy* Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K
Camera Title : 10 characters or symbols
Preset Points and Sequence : Total 8 groups, 256 programmable preset points* The sequence of all the preset points will follow the order of the minimal panning route.
Auto Tracking : Yes
Baud Rate : 9600
LENS
Focal Length : f3.9 ~ 85.9mm
F-number : F1.6 (Wide) ~ 3.7 (Tele)
Viewing Angle : 4°~ 60°
Auto Electronic Shutter : 1 / 60 (1/50) to 1 / 100,000 sec.
Auto Focus : Always / PTZ / Z Only / P Only
MECHANISM
Pan Range : 360°
Pan Speed : 360°/ 1 sec* The pan speed can be adjusted according to the different pan speed mode.
Tilt Range : 90°
Tilt Speed : 0°~ 90°under 1 sec
Zoom Ratio : 22X optical zoom
Zoom Speed : Approx. 7s (Tele ~ Wide)
OTHERS
IP Rating : IP66
Ambient Operating Temperature : -20°C ~ 50°C (-4°F ~ 122 °F)Fan: 40°C on, 30°C offHeater: 5°C on, 15°C off
Power Source (±10%) : DC12V
Current Consumption : 3A (max)

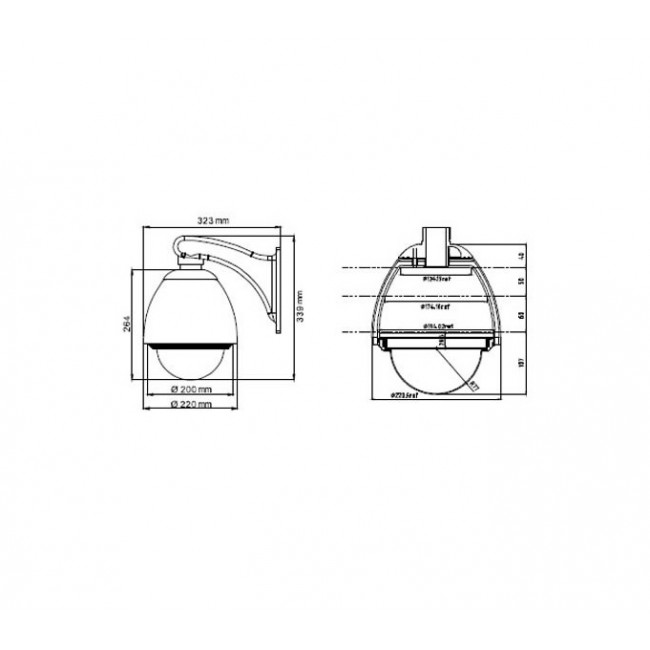

Dimensions (mm) : 323(W) x 339(H) (Bracket included)
Optional Device : Keyboard controller
Signal System : NTSC or PAL
Pick-up Element : 1/4" Sony Color Super HAD CCD image sensor
Number of Pixels : 768(H)*494(V)
Resolution : High Resolution
Min. Illumination : 0.6 Lux / F1.6
S/N Ratio : More than 48dB (AGC off)
Video Output : 1.0 Vp-p. 75Ω
BLC : On / Off
Gain Control : Low, Medium & High / Off
Sharpness : Auto / Low / Medium / High
White Balance : Auto / Indoor 1 / Indoor 2 / Sun / Cloudy* Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K
Camera Title : 10 characters or symbols
Preset Points and Sequence : Total 8 groups, 256 programmable preset points* The sequence of all the preset points will follow the order of the minimal panning route.
Auto Tracking : Yes
Baud Rate : 9600
LENS
Focal Length : f3.9 ~ 85.9mm
F-number : F1.6 (Wide) ~ 3.7 (Tele)
Viewing Angle : 4°~ 60°
Auto Electronic Shutter : 1 / 60 (1/50) to 1 / 100,000 sec.
Auto Focus : Always / PTZ / Z Only / P Only
MECHANISM
Pan Range : 360°
Pan Speed : 360°/ 1 sec* The pan speed can be adjusted according to the different pan speed mode.
Tilt Range : 90°
Tilt Speed : 0°~ 90°under 1 sec
Zoom Ratio : 22X optical zoom
Zoom Speed : Approx. 7s (Tele ~ Wide)
OTHERS
IP Rating : IP66
Ambient Operating Temperature : -20°C ~ 50°C (-4°F ~ 122 °F)Fan: 40°C on, 30°C offHeater: 5°C on, 15°C off
Power Source (±10%) : DC12V
Current Consumption : 3A (max)
Dimensions (mm) : 323(W) x 339(H) (Bracket included)
Optional Device : Keyboard controller
