Λεπτομέρειες
Network Compression : H.264 / MPEG4 / MJPEG
Multiple Video Streaming (Encode Modes, IPS, Resolution) : Yes
LAN port : Yes
LAN Speed : 10/100 Based-T Ethernet
Supported Protocols : DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP,RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS
ONVIF Compatible : Yes
Frame Rate : 30fps
Number of Online User : 10
Security
- Multiple user access levels with password
- IP address filtering
- Digest authentication
Remote Access
- Internet Explorer on windowns operating system
- 16 Ch Video viewer on windows & Mac operating system
- EagleEyes on iPhone, iPad & Android
Camera
Image Sensor : 1/2.9" SONY CMOS. image sensor
Video Resolution : 1080P to QVGA
Min Illumination : 0.1 Lux / F1.5, 0 Lux (LED ON)
Shutter Speed : 1/2 to 1/10,000 sec
S/N Ratio : More than 48dB (AGC off)
Lens : f3.8mm / F1.5
Viewing Angle : 73.2°(Horizontal) / 47.4°(Vertical) / 85.4°(Diagonal)
IR LED : 12 bong
IR Effective Range : Up to 10 m
IR Shifter : Yes
LED Indication : Yes
White balance : ATW
AGC : Auto
IRIS Mode : AES
POE : Co(IEEE 802.3af)
External I/O Alarm : Yes
Microphone : Yes
Speaker : Yes
Power Source (±10%) : 12V / 1A
Operating Temperature : 0?~40?

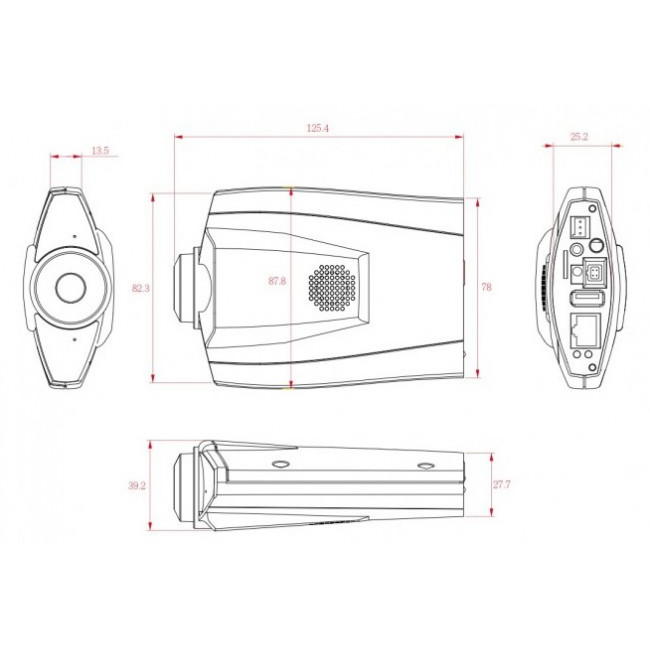

Dimensions (mm)** : 126(L) x 87(W) x40 (H)
Others
MObile Surveillance : iPad / iPhone / Android mobile device
RTC (real-time clock) : Yes
Motion Detection : Yes
Digital Pan / Tilt / Zoom : Yes
Event Notification : FTP / Email
Minimum Web Browsing Requirements
- Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
- 256 MB RAM
- AGP graphics card, Direct Draw, 32MB RAM
- Windows7, Vista & XP, DirectX 9.0 or later
- Internet Explorer7.x or later
