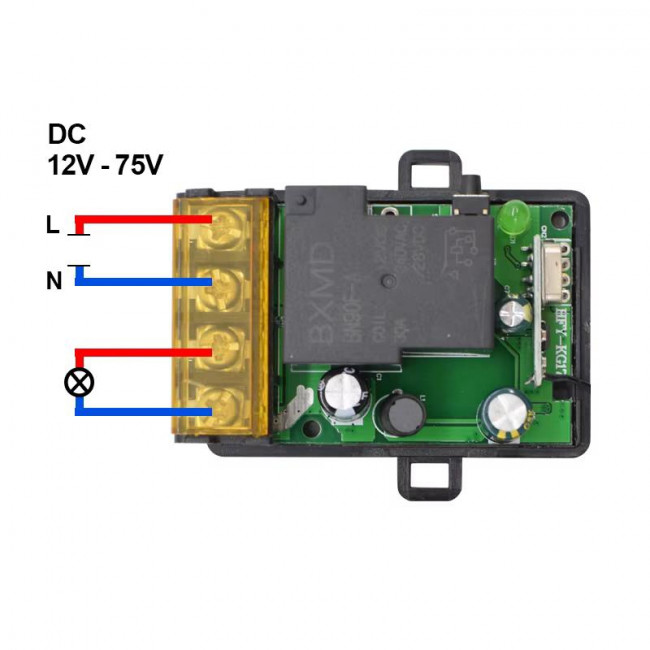

ΔΕΚΤΗΣ ΤΗΛΕΧΕΙΡΙΣΜΟΥ 434MHz 12-75V DC 40A

ΔΕΚΤΗΣ ΤΗΛΕΧΕΙΡΙΣΜΟΥ 1 ΚΑΝΑΛΙ 434MHz 12-75V DC 40A
ΠΡΟΣΟΧΗ ΜΟΝΟ Ο ΔΕΚΤΗΣ ΧΩΡΙΣ ΤΗΛΕΧΕΙΡΙΣΤΗΡΙΟ.
Εως 16 τηλεχειριστήρια (Συνεργάζεται με όλα τα τηλεχειριστηρια σταθερού κωδικού της αγοράς)

About Working mode:

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Clearing the code :
Method 1:

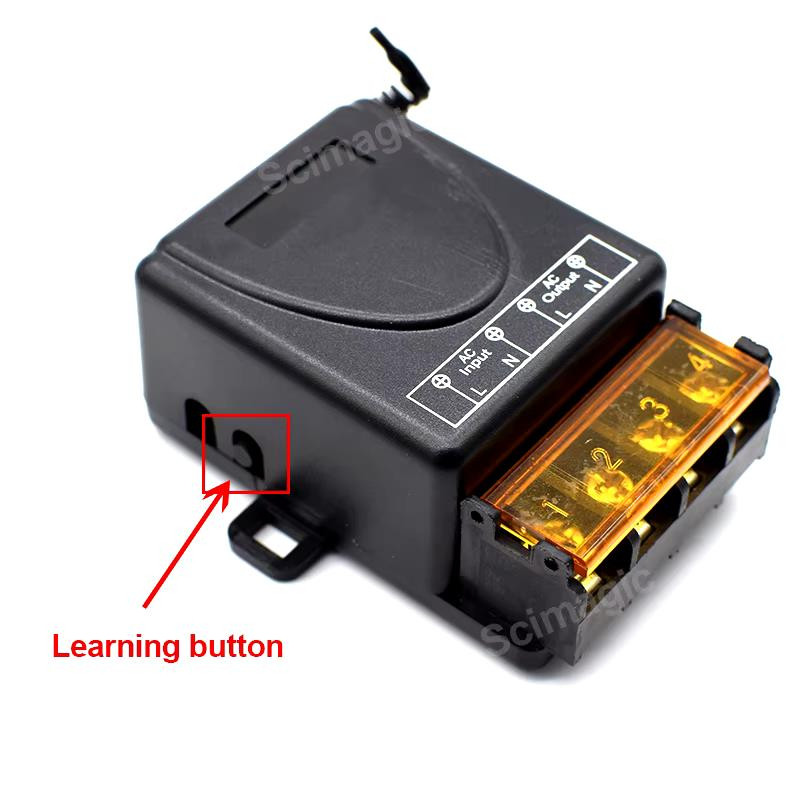

Push the learning button on the receivers for 8 times , the codes will be cleaned.
Method 2:
Keeping press the Learning Button on the receiver until the LED indicator ON and then flash,until it flash for 8 times. it mean the code have been cleared successfully.
After clearing the code, all the remote control cannot work any more.

Learning the code :(Momentary)
Push the learning key on the receiver 1 time , it comes into momentary setting mode .
Wait for a moment , the LED will be off , it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash then come off .
After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : ( Toggle )
Push the learning key on the receiver 2 times , it comes into toggle setting mode
Wait for a moment , the LED will be off , it comes into learning state .
Push the remote button,LED indicator on the receiver board will flash then come off.
After 3 seconds , the LED indicator will be on again , learning successfully .

Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”.
For example : button A = ON , button B = OFF
Push the learning key on the receiver 3 times , it comes into latching mode .
Wait for a moment , the LED indicator on the receiver board will flash then come off.
Push the remote button A .
LED flash for 5 times .
Push the remote button B .
Led flash for 5 times .
After 3 seconds , the LED indicator will be on again , learning successfully.
A = ON , B = OFF .
