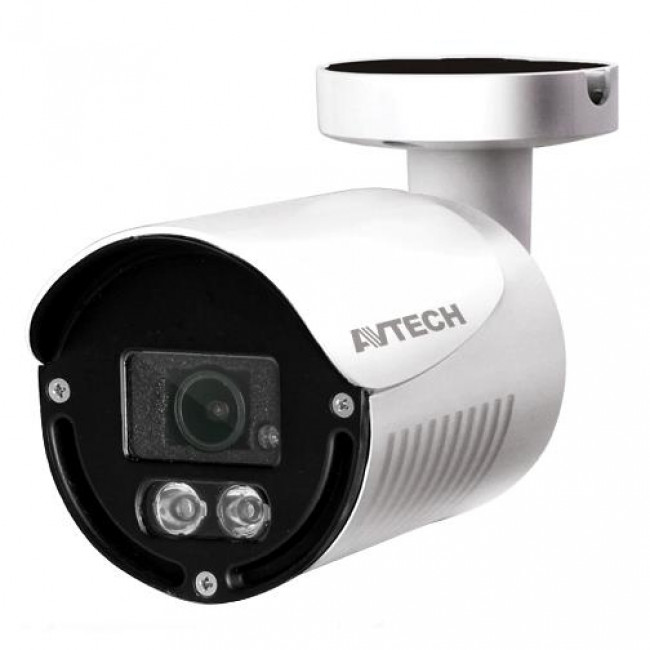

DGC 1125P/F36 ΚΑΜΕΡΑ BULLET 2 MP TVI AVTECH

Feature

1/2.9” SONY CMOS sensor

1080P video output

Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)

Day and night 24-hour surveillance with IR effective distance up to 25 meters

DWDR to increase image recognizability in overexposure and dark areas

IP66 for weather-proof application

Camera parameters adjustable when used with AVTECH HD CCTV DVR



Specifications



Pick-up Element 1/ 2.7” CMOS image sensor

Number of Pixels 1930(H) x 1088(V)

Video Frame Rate 1080P@30fps / 1080P@25fps

Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)

S/N Ratio More than 48dB (AGC OFF)

Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec

Lens f3.6mm / F1.8

Lens Angle 89° (Horizontal) / 46° (Vertical) / 108° (Diagonal)

IR LED 2 units

IR Effective Distance Up to 25 meters

IR Shift YES

Day & Night Mode YES

IRIS Mode AES

White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K

AGC Adjustable

Sharpness Adjustable

Flickerless 50HZ / 60HZ / OFF

BLC Adjustable

External Alarm I/O YES (1 in / 1 out)

Operating Temperature -25? ~ 50?

Operating Humidity 90% or less relative humidity

Power Source (±10%) DC12V / 1A

Current Consumption (±10%) 180mA (IR LED OFF) / 460mA (IR LED ON)

Net Weight (kg) 0.36
