ΔΙΑΚΟΠΤΗΣ ΙΣΧΥΟΣ MOSFET 4-60V DC 600W ΜΕ ΔΙEΓΕΡΣΗ HIGH-LOW

ΔΙΑΚΟΠΤΗΣ ΙΣΧΥΟΣ MOSFET 4-60V DC 600W ΜΕ ΔΙEΓΕΡΣΗ HIGH-LOW

Specification:

:Working temperature: -40—85?

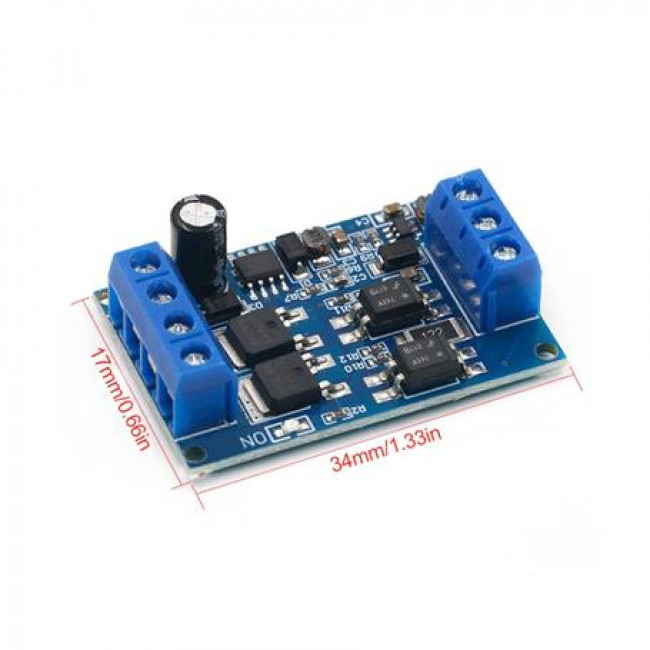

:Size: 4.6*2.9*1.5cm

:Working voltage: DC 4V--60V

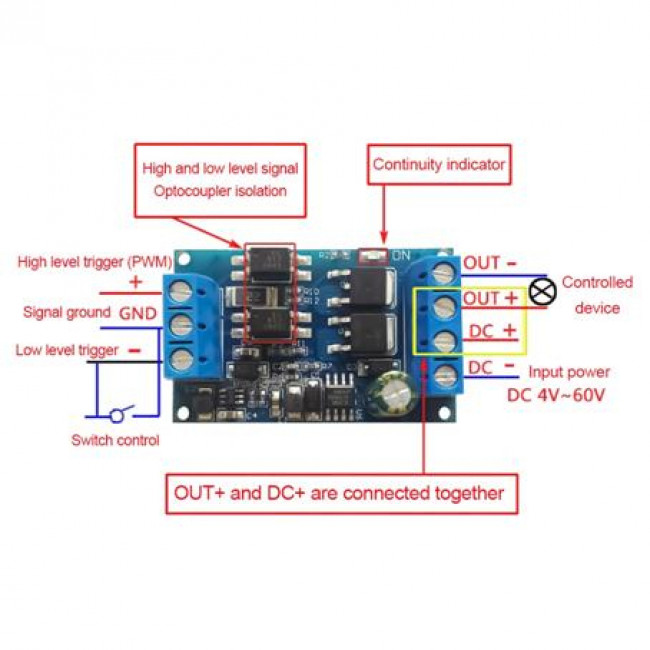

:Trigger signal source: high-level trigger (DC3.0V--24V), low-level trigger (DC 0.0V~0.6V), switch control, can be connected to MCU IO port, PLC interface, DC power supply, etc., can be connected to PWM Signal, signal frequency 0--2.5KHZ support

:Output capacity: DC 4V--60V, continuous current 10A at room temperature, power 600W! Under the condition of auxiliary heat dissipation, the current can reach 15A

:Application: The output terminal can control high-power equipment, motors, light bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness, etc.
