ΔΙΑΚΟΠΤΗΣ ΙΣΧΥΟΣ MOSFET 5-36V DC, 15A ΜΕ ΔΙEΓΕΡΣΗ HIGH-LOW

ΔΙΑΚΟΠΤΗΣ ΙΣΧΥΟΣ MOSFET 5-36V DC MAX 8A ΜΕ ΔΙEΓΕΡΣΗ HIGH-LOW
Product Specifications & Applications:
1. Working voltage: DC 5V - 36V.

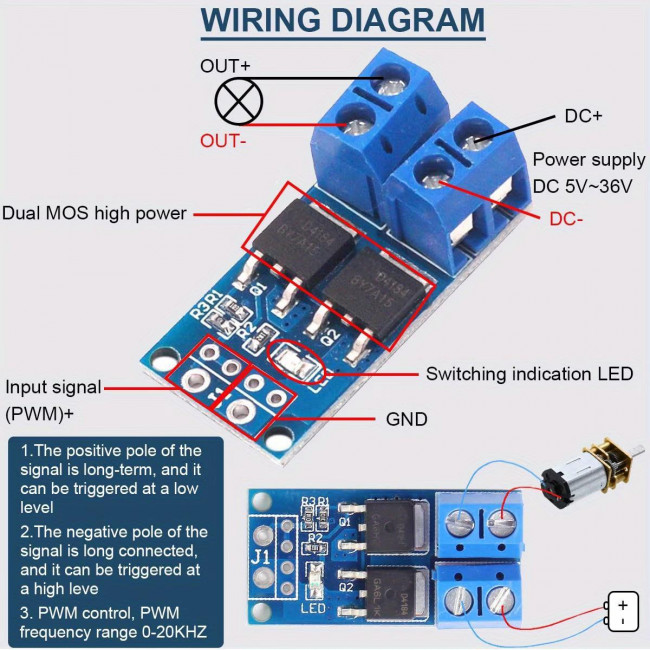

2. The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal can be supported frequency range 0--20KHZ.
3. Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W!
4. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve, motor speed control, lamp brightness.
5. Service life: unlimited-off.
6. Working temperature: -40-85 ?.

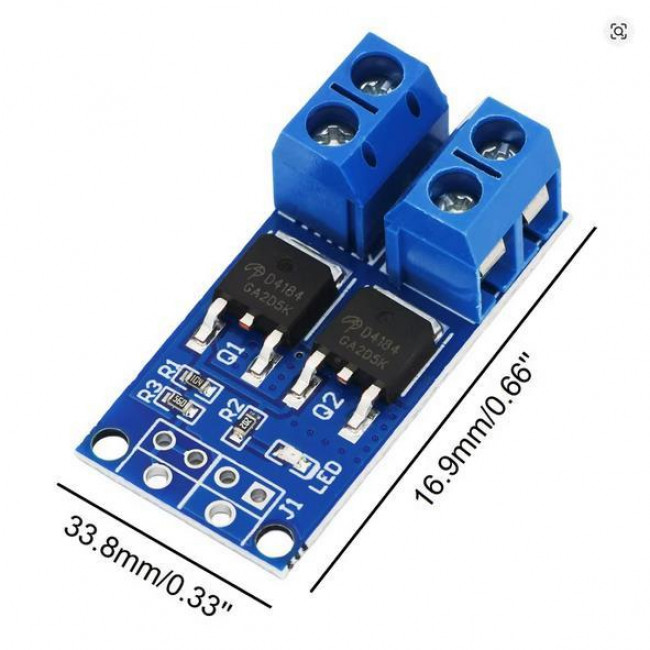

7. Size: 3.4 * 1.7 * 1.2cm.
