ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ:
Οδηγός Εγκατάστασης

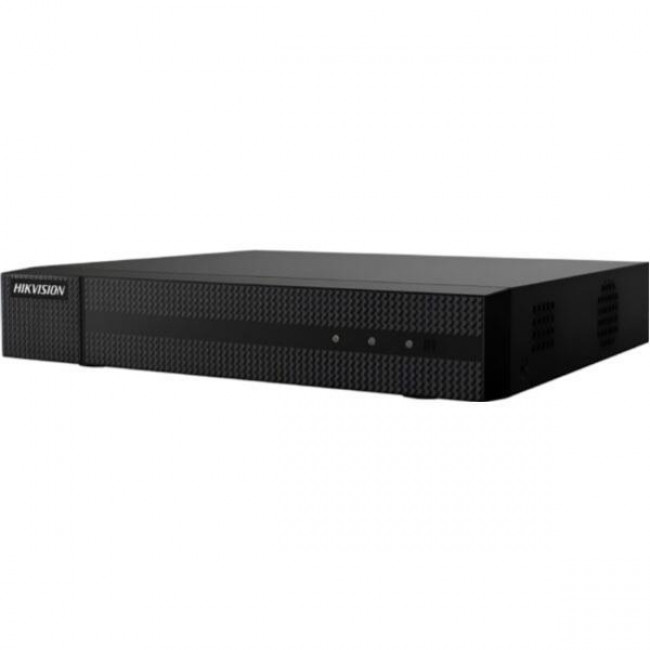

| DVR | HWD-6116MH-G4 |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog Video Input: | 16-ch,BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection |
| HDTVI Input: | •4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps |
| •720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps | |
| AHD Input: | •4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps |
| •720p@25 fps, 720p@30 fps | |
| HDCVI Input: | •4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps |
| •1080p@30 fps, 720p@25 fps, 720p@30 fps | |
| CVBS Input: | Support |
| IP Video Input: | •2-ch (up to 18-ch) |
| •Enhanced IP Mode on: 8-ch (Up to 24-ch), Each Up to 4 Mbps | |
| •Up to 6 MP Resolution | |
| Audio Compression: | G.711u |
| Audio Input: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via Coaxial Cable |
| HDMI/VGA Output: | •1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, |
| •1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz | |
| •1024 × 768/60Hz | |
| Encoding Resolution: | •When 1080p Lite Mode is not Enabled:4 MP lite/1080p/720p/VGA |
| •When 1080p Lite Mode is not Enabled:WD1/4CIF/CIF | |
| •When 1080p Lite Mode is Enabled:4 MP Lite/3 MP/1080p Lite | |
| •When 1080p Lite Mode is Enabled:720p Lite/VGA/WD1/4CIF/CIF | |
| Main Stream Frame Rate: | •When 1080p Lite Mode is not Enabled:4/WD1/4CIF/CIF@25 fps |
| •When 1080p Lite Mode is not Enabled:(P)/30 fps (N) | |
| •When 1080p Lite Mode is Enabled: 4 MP Lite@15 fps | |
| •When 1080p Lite Mode is Enabled:1080p Lite/720p lite/VGA/WD1 | |
| •When 1080p Lite Mode is Enabled:4CIF/CIF@25 fps (P)/30 fps (N) | |
| Sub-Stream Frame Rate: | WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
| Video bit Rate: | 32 Kbps to 10 Mbps |
| Audio Output: | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit Rate: | 64 Kbps |
| Dual Stream: | Support |
| Stream Type: | Video, Video & Audio |
| Synchronous Playback: | 16-ch |
| Remote Connections: | 128 |
| Network Protocols: | •TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, |
| •NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| SATA Interface: | 1 SATA interface |
| Hard Disk Capacity: | Up to 10 TB Capacity for Each Disk |
| Two-Way Audio Input: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using the First Audio Input) |
| Network Interface: | 1, RJ45 10M/100M/1000M Self-Adaptive Ethernet Interface |
| USB Interface: | Rear Panel: 2 × USB 2.0 |
| Power Supply: | 12 VDC |
| Consumption (Without HDD): | ≤ 20 W |
| Working Temperature: | -10 °C to +55 °C |
| Working Humidity: | 10% to 90% |
| Dimensions (W × D × H): | 265 × 225 × 48 mm |
| Weight (Without HDD): | ≤ 1.2 kg |
