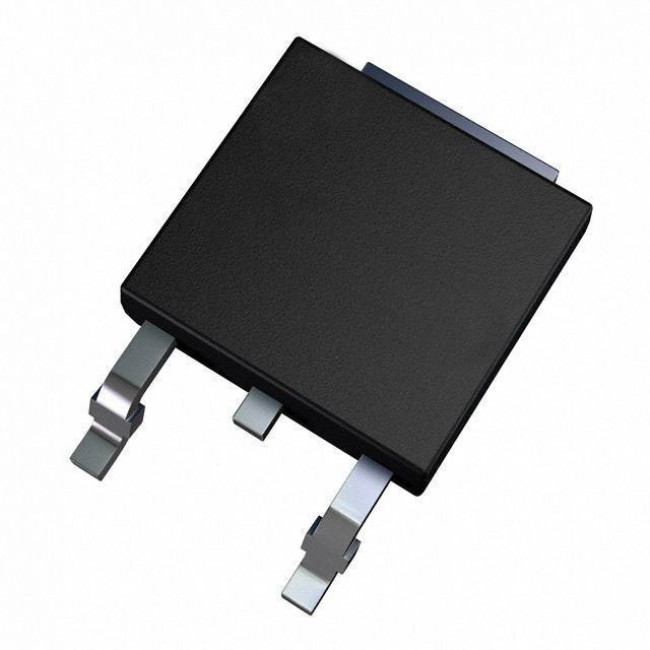

STTH 2003CG ΔΙΟΔΟΣ 20Α 300V SMD D2PAK

Encapsulation:TO-263

Brand:STMicroelectronics

Diode Configuration:Common Cathode

Maximum Continuous Forward Current:20A

Rectifier Type:Switching

Number of Elements per Chip:2

Peak Reverse Repetitive Voltage:300V

Mounting Type:Surface Mount

Package Type:D2PAK (TO-263)

Diode Technology:Silicon Junction

Diode Type:Silicon Junction

Pin Count:3

Maximum Forward Voltage Drop:1.25V

Length:10.28mm

Width:9.35mm

Height:4.6mm

Peak Reverse Recovery Time:35ns

Dimensions:4.6 x 10.28 x 9.35mm

Minimum Operating Temperature:-65 °C

Peak Non-Repetitive Forward Surge Current:110A

Maximum Operating Temperature:+175 °C

Peak Reverse Current:20μA
