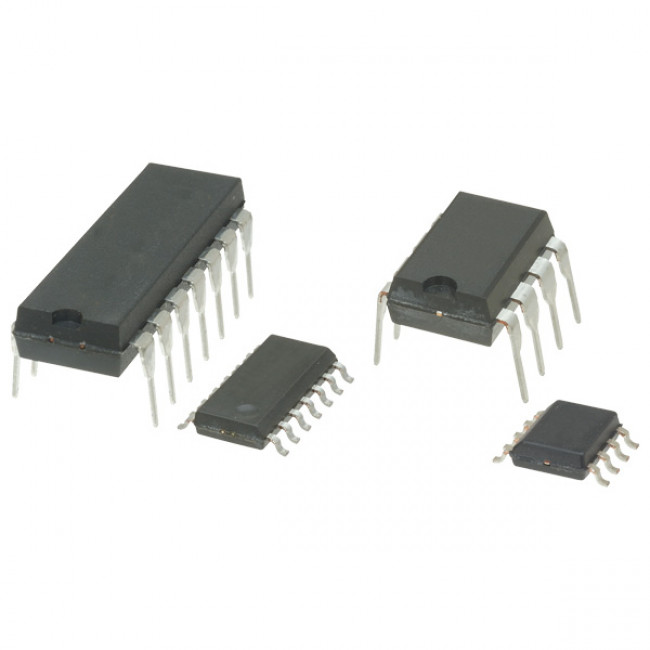

CD 40103 IC

CD 40103 IC 8-stage synchronous down counter with a single output which is active when the internal count is zero.



Synchronous or asynchronous preset

Medium-speed operation: fCL = 3.6 MHz (typ.) @ VDD = 10V

Cascadable

100% tested for quiescent current at 20 V

Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C

Noise margin (full package-temperature range) =

1 V at VDD = 5 V

2 V at VDD = 10 V

2.5 V at VDD = 15 V

Standardized, symmetrical output characteristics

5-V, 10-V, and 15-V parametric ratings

Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices"

Applications:

Divide-by-"N" counters

Programmable timers

Interrupt timers

Cycle/program counter
