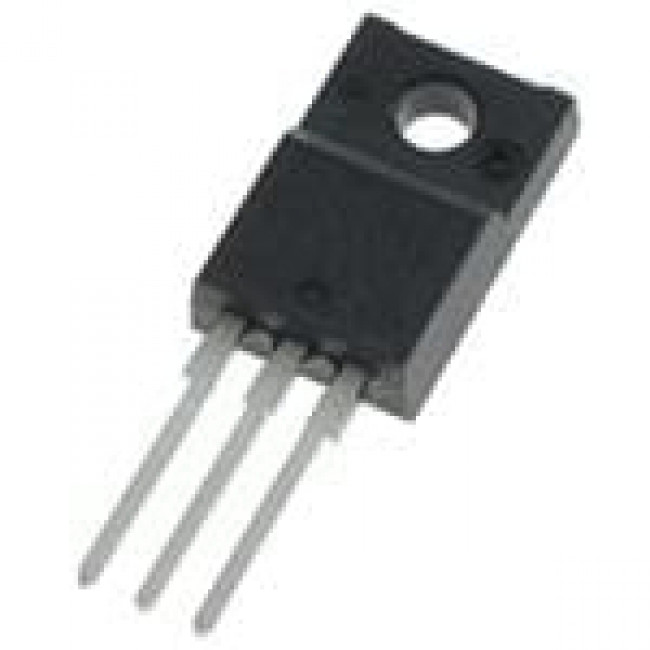

TK 6A60D N-CH TRANSISTOR 6A 600V

Product Category:MOSFET

Technology:Si

Mounting Style:Through Hole

Package/Case:TO-220-3

Transistor Polarity:N-Channel

Number of Channels:1 Channel

Vds - Drain-Source Breakdown Voltage:600 V

Id - Continuous Drain Current:6 A

Rds On - Drain-Source Resistance:1.25 Ohms

Vgs - Gate-Source Voltage:10 V

Vgs th - Gate-Source Threshold Voltage:2 V

Qg - Gate Charge:16 nC

Maximum Operating Temperature:+ 150 C

Pd - Power Dissipation:40 W

Channel Mode:Enhancement

Configuration:Single

Height:15 mm

Length:10 mm

Series:TK6A60D

Transistor Type:1 N-Channel

Width:4.5 mm

Fall Time:12 ns

Rise Time:20 ns

Typical Turn-Off Delay Time:60 ns

Typical Turn-On Delay Time:40 ns
