Λεπτομέρειες

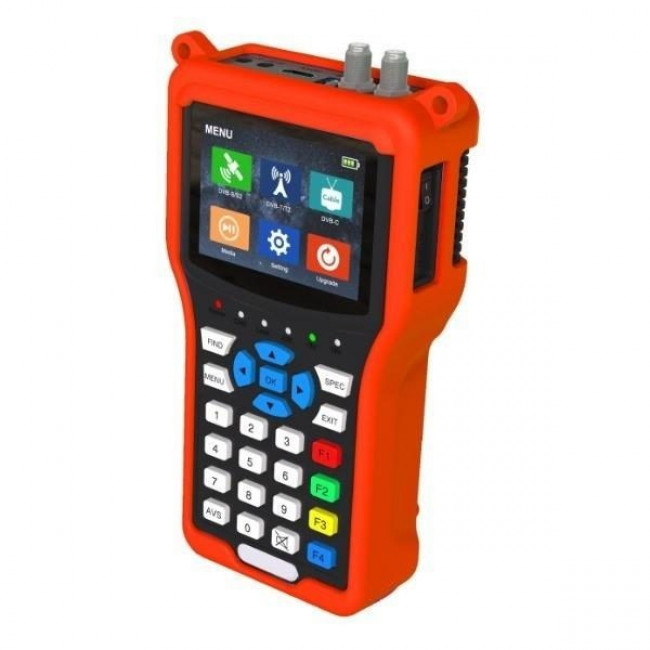

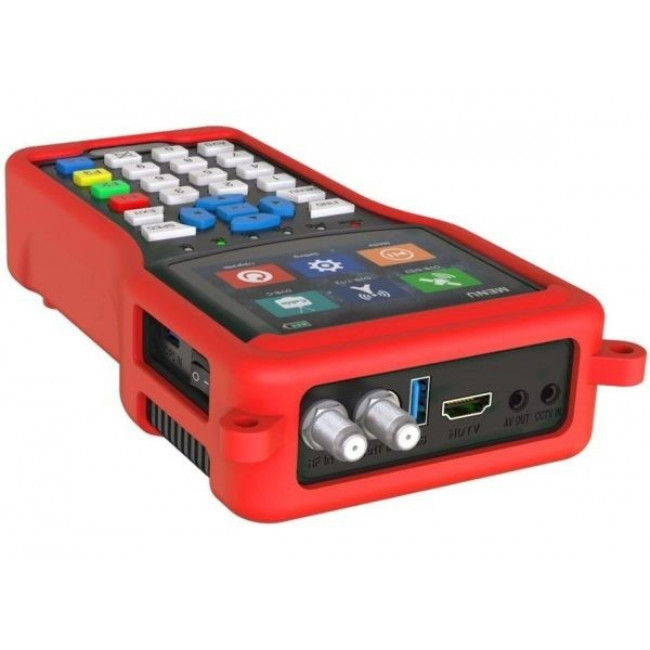

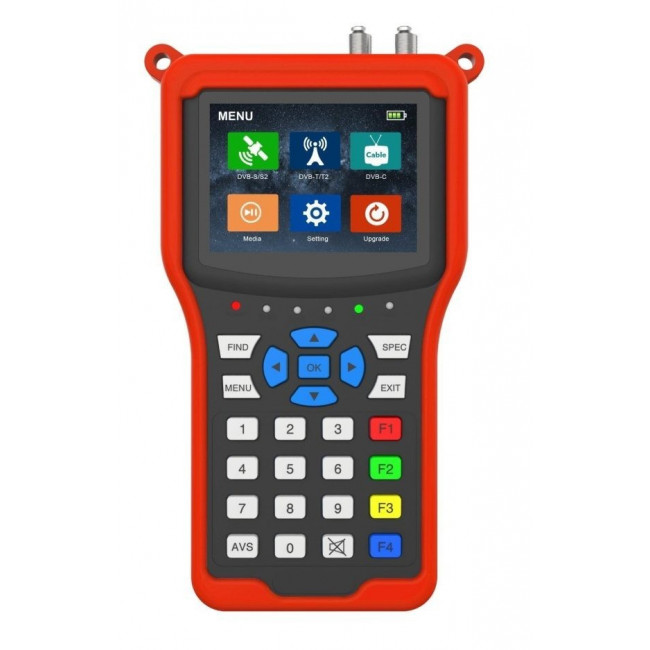

3.5”TFT LCD Screen
Support DVB-S/S2/T/T2/C
Support CCTV camera testing
Support (8MP Optional)
Support Spectrum Analyzer
Multi-lingual OSD and friendly UI
Support DVB-S/S2/T/T2/C
Support CCTV camera testing
Support (8MP Optional)
Support Spectrum Analyzer
Multi-lingual OSD and friendly UI
| Hign-concerned Chemical | None |
| FTA(Free To Air) | Yes |
| High Definition | Yes |
| Frequency Range | 5MHz~2150MHz |
| Demodulation | QPSK,8PSK |
| DiSEqC 1.0/1.1/1.2 | Supported |
| ODM | Supported |
| USB | Yes |
| DIY Supplies | ELECTRICAL |
| Model Number | SF-3700GM |
| Type | Digital |
| Name | Digital Combo meter SF-3700GM |
| Signal Level | -25~-65dBm |
| 22KHz tone | Supported |
| Certification | CE |
| OEM | Supported |
|
System Resources
|
|
|
Main Processor
|
600M Hz based CPU
|
|
Flash Memory
|
64M Bits
|
|
DDR2 SDRAM
|
1024M Bits
|
|
Tuner/Front-end
|
|
|
Tuner Type
|
DVB-S/DVB-S2
|
|
Input Connector
|
F-type
|
|
Frequency Range
|
5MHz~2150MHz
|
|
Signal Level
|
-65~-25dBm
|
|
Impedance
|
75Ω
|
|
LNB Power & Polarization
|
Vertical:+13V
|
|
Horizontal:+18V
|
|
|
Current:Max.500mA
|
|
|
Overload Protection
|
|
|
DiSEqC Control
|
Version 1.0/1.1/1.2/1.3,USALS Available
|
|
22KHz Tone
|
Frequency:22±1KHz
|
|
Demodulation
|
QPSK,8PSK,16APSK,32APSK
|
|
Symbol Rate
|
1~60Msps
|
|
|
|
|
Tuner Type
|
DVB-T/DVB-T2,DVB-C
|
|
Input Connector
|
IEC-type,Connector,Male
|
|
Input Frequency
|
5-866MHz
|
|
Signal Level
|
-78~20dBm
|
|
Impedance
|
75Ω
|
