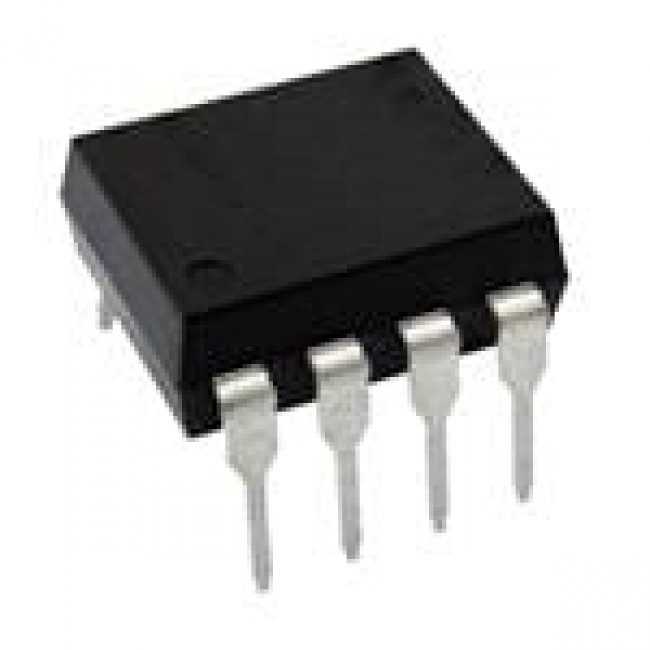

HCPL 3120 IC OPTO

ΔΙΑΘΕΣΙΜΟ ΜΟΝΟ ΚΑΤΟΠΙΝ ΠΑΡΑΓΓΕΛΙΑΣ

Product Category:Logic Output Opto-couplers
Package/Case:DIP-8
Output Type:Open Collector
Number of Channels:1 Channel
Isolation Voltage:3750 Vrms
If - Forward Current:16 mA
Vf - Forward Voltage:1.8 V
Vr - Reverse Voltage:5 V
Pd - Power Dissipation:295 mW
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 100 C
Height:3.56 mm
Length:9.65 mm
Width:6.35 mm
Propagation Delay - Max:500 ns
Fall Time:100 ns
