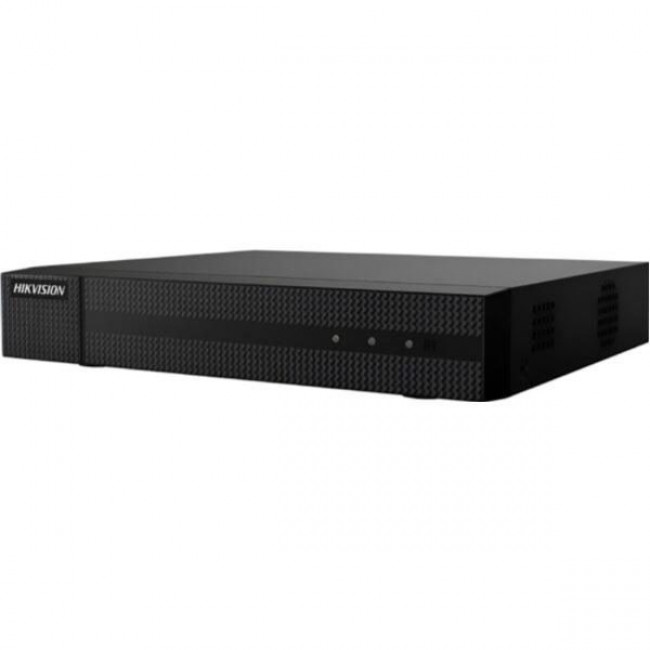

HIKVISION/HiWatch DVR HWD-7104MH-G4 4CH 5MP

HIKVISION/HiWatch DVR HWD-7104MH-G4 4CH 5MP

Κωδικός Προϊόντος: 67441

HIKVISION/HiWatch DVR Καταγραφικό,4 καναλιών,Turbo HD.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ:

Ανάλυση 5 MP,κωδικοποίση βίντεο H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.

Ανίχνευση κίνησης (αναγνώριση ανθρώπων και οχημάτων).

Σκληρός δίσκος τεχνολογίας Sata,χωρητικότητας 10 ΤΒ.

Yποστήριξη σημάτων βίντεο HDTVI/AHD/HDCVI/CVBS.

Τροφοδοσία 12 VDC/1,5 A.

Διαβάστε Περισσότερα Διαβάστε Λιγότερα

HIKVISION/HiWatch DVR HWD-7104MH-G4 4CH 5MP is available for purchase in increments of 1

Διαθεσιμότητα:Άμεσα Διαθέσιμο / 1-3 Εργάσιμες

Τιμή eshop (Με ΦΠΑ) 104,00€

Περιγραφή Προϊόντος

Λεπτομέρειες

DVR	HWD-7104MH-G4
Video Compression:	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input:	4-ch,BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection
HDTVI Input:	•8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps
	•4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps
	•720p@30 fps, 720p@25 fps
AHD Input:	•5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps,
	•1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input:	4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS Input:	PAL/NTSC
IP Video Input:	•2-ch (Up to 6-ch)
	•Enhanced IP Mode on: 4-ch (Up to 8-ch), Each Up to 4 Mbps
	•Up to 8 MP Resolution
	•Support H.265+/H.265/H.264+/H.264 IP Cameras
Audio Compression:	G.711u
Audio Input:	1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via Coaxial Cable
HDMI/VGA Output:	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding Resolution:	8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Main Stream Frame Rate:	•8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
	•1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
	•8 MP@8 fps is only available for channel 1.
Sub-Stream Frame Rate:	WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video bit Rate:	32 Kbps to 10 Mbps
Audio Output:	1-ch, RCA (Linear, 1 KΩ)
Audio bit Rate:	64 Kbps
Dual Stream:	Support
Stream Type:	Video, Video & Audio
Synchronous Playback:	4-ch
Remote Connections:	32
Network Protocols:	•TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS,
	•NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA Interface:	1 SATA interface
Hard Disk Capacity:	Up to 10 TB Capacity for Each Disk
Two-Way Audio Input:	1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using the First Audio Input)
Network Interface:	1, RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface:	2 × USB 2.0
Power Supply:	12 VDC, 1.5 A
Consumption (Without HDD):	≤ 15 W (Without HDD)
Working Temperature:	-10 °C to +55 °C
Working Humidity:	10% to 90%
Dimensions (W × D × H)	260 × 222 × 45 mm
Weight (Without HDD):	≤ 1.16 kg
