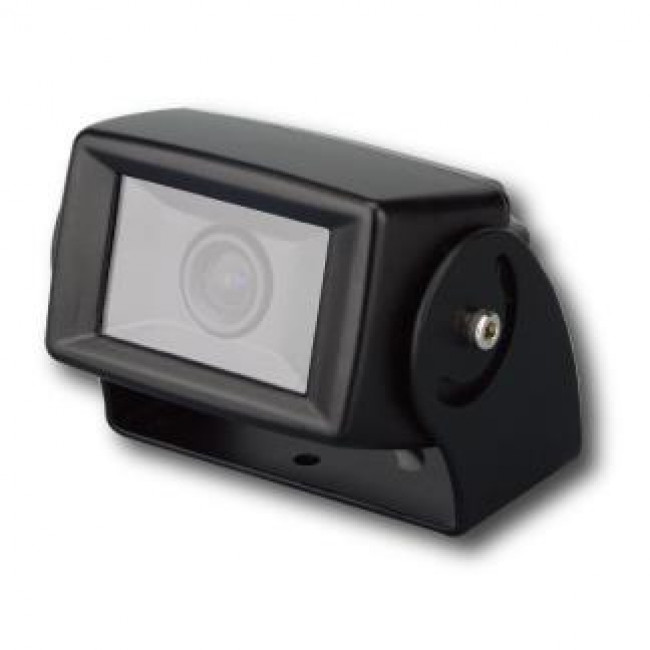

HMC-M300P KAMEPA COLOR WATERPROOF

Super picture Quality 1/4 Inch CCD

Water-proof Camera

Mirror function

Easy Installation as DIY

Auto control of brightness & darkness

•High sensitivity

•Reliability lower power consumption

•Optional: 20m cable



COLOR CAMERA SPECIFICATIONS

Description HMC-300P(PAL)

lmage sensor 1/4 Inch CCD 310K pixel

Effective pixel H512 * V582

Scanning system 625line 2:1 Interlacing

Sync. Ststem Intemal synchronizaion

Scanning frequency (H)15.625KHz * (V)50Hz

Sub carrirer 4.43 MHz

Horizontal Resolution 360 TV Lines above

Video output VBS 1.0Vp-p./75(Video:0.714Vp-p, Syn:0.286Vp-p)

S/N ratio 48dB Min (AGC off, r=1, Y signal)

Gamma(r) r=0.45

AGC +18dB Max

IRIS Electrical IRIS/Auto Iris

Standard Lux 1,000 Lux at F 4.0(3,200'K)

Min.illumination 0.5 Lux at F 1.4 AGC ON

Lens f=1.58mm F2.0

Gain control Automatic gain control(0~18db)

White balance Automatic white balance control

Auto iris Electronic auto iris(Shutter speed:1/50,1/60~1/100.000)

Input voltage DC 12V ± 1V 160mA MAX

Ambient Temperature -10? ~ 60?, 85%RH

Dimension 50(W) X 45(H) X 47.5(D)mm

Housing Material Zinc & EGI
