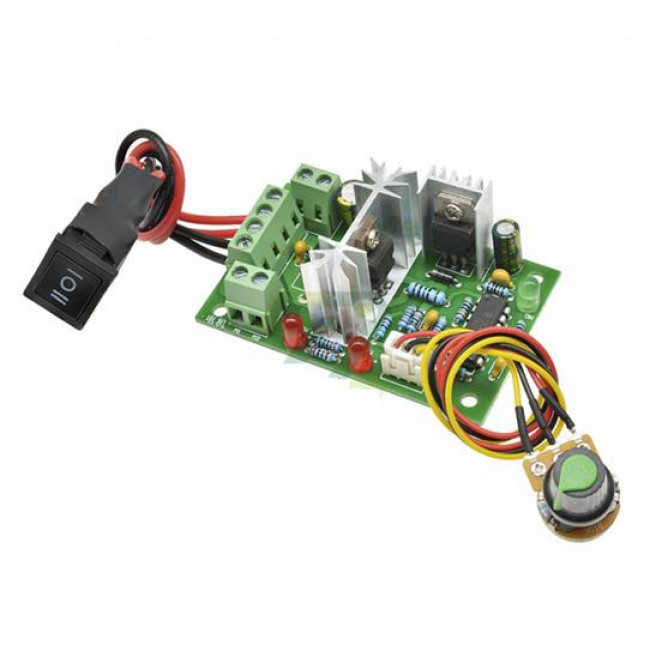

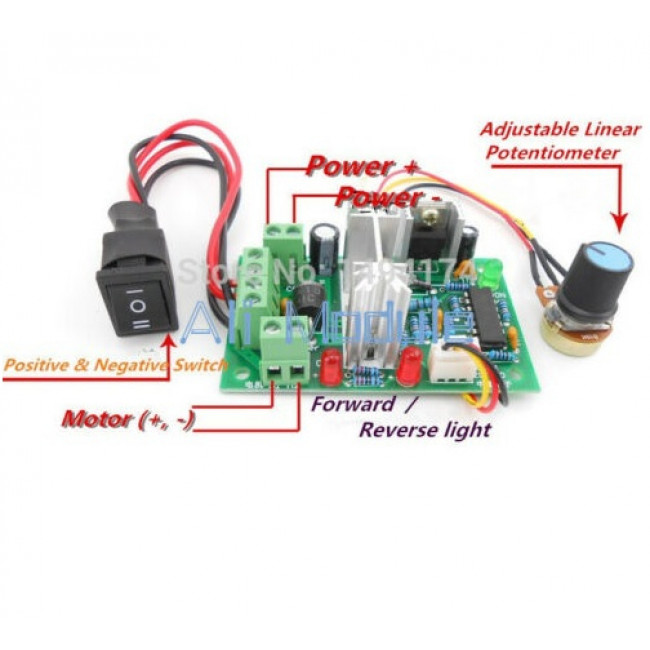

ΡΥΘΜΙΣΤΗΣ ΣΤΡΟΦΩΝ ΜΟΤΕΡ DC 6-30V ΜΕ ΑΛΛΑΓΗ ΠΟΛΙΚΟΤΗΤΑΣ

ΡΥΘΜΙΣΤΗΣ ΣΤΡΟΦΩΝ MOTER DC 6-30V ΜΕ ΑΛΛΑΓΗ ΠΟΛΙΚΟΤΗΤΑΣ ΜΕΣΩ ΔΙΑΚΟΠΤΟΥ



Input: 10V-36V DC

Output: Max 150W(When more than 24V)

PWM range: 10%-95%

Frequency: 500Hz

Current: Max 5A ,overload short circuit protection current 8A, short circuit time is less than 30 seconds.

Mounting hole center distance: 63.5 mm * 36.5 mm

Positioning hole diameter: 3.5 mm

High efficiency, high torque, generates low heat

Control the speed of a DC motor with this controller

With reverse polarity protection, high current protection
