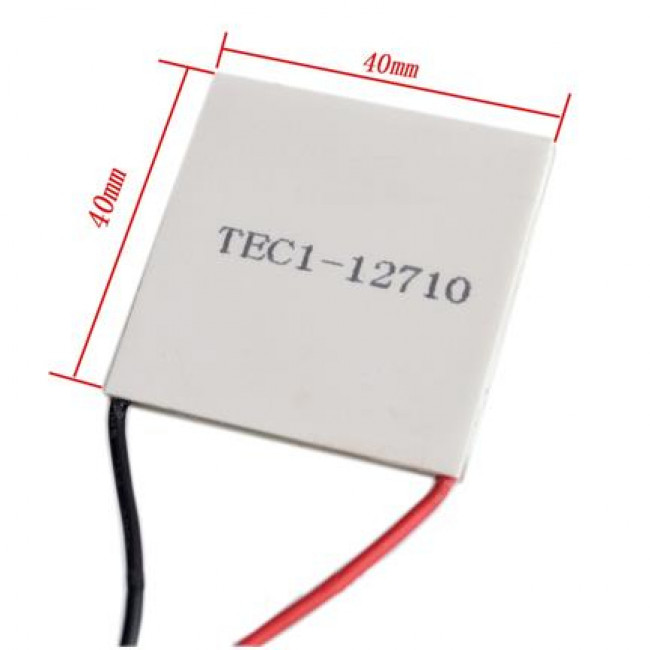

TEC1-12710 THERMOELECTRIC COOLER PELTIER PLATE

TEC1-12710

Dimension: 40 * 40mm components logarithmic

Wire specifications: 300 + / - 5 mm long RV lead wire single head 5 mm tin plating

Internal resistance value: 1.2 ~ 1.5 Ω (23 + / - 1degree, environment temperature 1 KHZ Ac test)

Maximum temperature difference: delta Tmax (Qc = 0) above 60degree.

Working current: Imax = 10 a voltage (vmax 15 starts)

Rated voltage: DC12V (Vmax: 15.5 V)

Cooling power: 92 w Qcmax

The assembly pressure: 85 n/cm2

Working conditions: temperature range and 55degree ~ 83degree (high environmental temperature will directly affect the cooling efficiency)

Encapsulation process: standard around 704 silicone rubber seal

Packing: bubble box packing, storing conditions - 10degree to 40degree ambient temperature

Storage conditions: - 40 ~ 60degree
