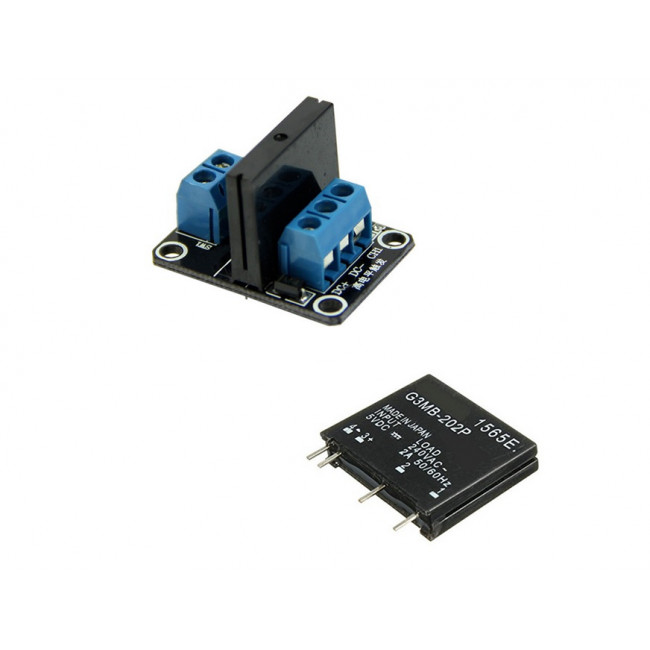

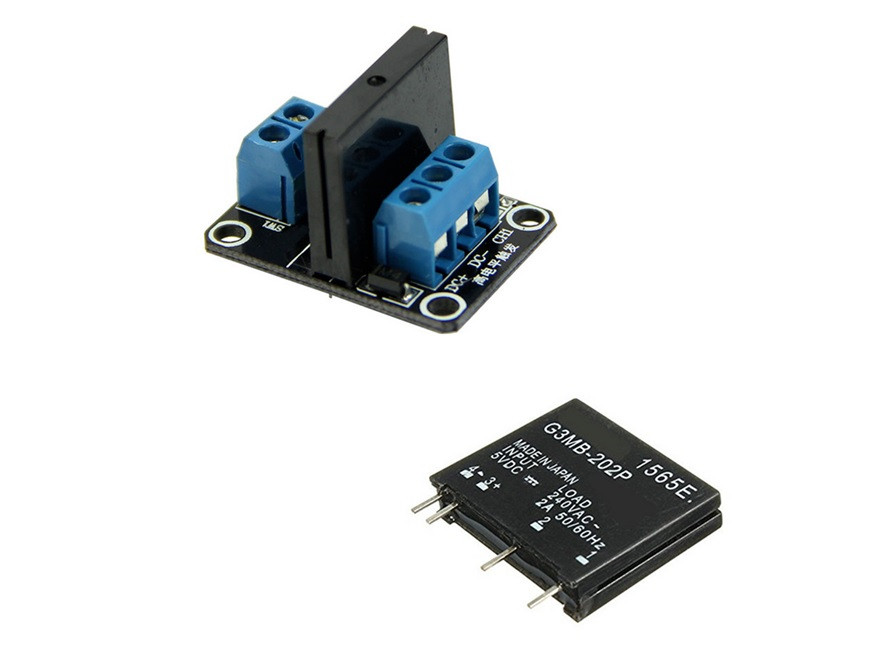

ΡΕΛΕ SOLID STATE MODULE 5V HIGH LEVEL TRIGGER

ΡΕΛΕ SOLID STATE MODULE 5V HIGH LEVVEL TRIGGER

5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A

Size: 24*32*21mm/0.94*1.25*0.82”

Input Power: 5V DC (160mA)

Input control signal voltage:

(0-2.5V state low relay OFF)

(3-5V state high relay ON)



Module interface:

Input section:

DC+: positive power supply (by relay voltage power supply)

DC-: connect power negative

CH: relay module signal to trigger the end (high level trigger effective)

Voltage version 5V

Static current 0mA

Working current 12.5mA

Trigger voltage 3.3-5V

Trigger current 2mA
