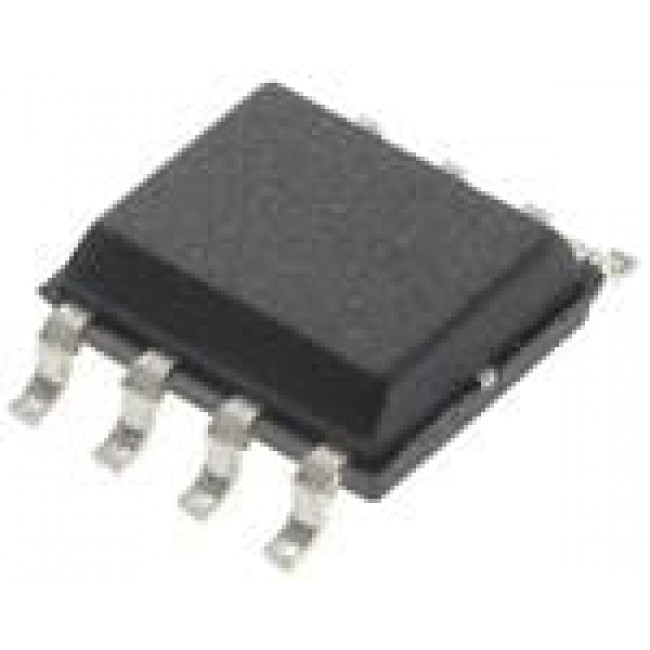

IRF 7314PBF MOSFET DUAL SOIC-8

Product Category:MOSFET

RoHS: Details

Technology:Si

Mounting Style:SMD/SMT

Package/Case:SO-8

Transistor Polarity:P-Channel

Number of Channels:2 Channel

Vds - Drain-Source Breakdown Voltage:20 V

Id - Continuous Drain Current:5.3 A

Rds On - Drain-Source Resistance:98 mOhms

Vgs - Gate-Source Voltage:12 V

Qg - Gate Charge:19 nC

Minimum Operating Temperature:- 55 C

Maximum Operating Temperature:+ 150 C

Pd - Power Dissipation:2 W

Channel Mode:Enhancement

Configuration:Dual

Height:1.75 mm

Length:4.9 mm

Transistor Type:2 P-Channel

Type:Power MOSFET

Width:3.9 mm

Brand:Infineon / IR

Fall Time:49 ns

Rise Time:40 ns

Typical Turn-Off Delay Time:42 ns

Typical Turn-On Delay Time:15 ns
