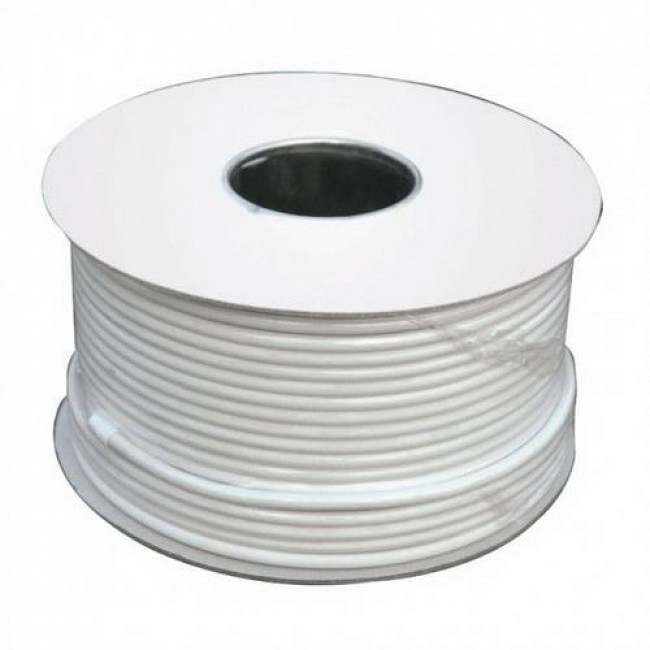

RG6 ΚΑΛΩΔΙΟ ΟΜΟΑΞΟΝΙΚΟ 75Ω ST C201 ΧΑΛΚΟΣ (100m)

Center Conductor:

1.0+0.01mm Solid bare copper

Dielectric:

4.57+0.05mmFoam PE

1st Shield:

Al Foil

Braid Coverage:

16X4X0.12+0.01mmAl-Mag(47% coverage)

Jacket:

6.8+0.05mm white PVC

Impedance:

75+3 Ohm

Capacitance:

54+3pF/m

Velocity of Propagation:

82%

Attenuation Frequency(MHz)

-at 5Mhz:

(db/100m at 20?) 1.98

-at 55Mhz:

(db/100m at 20?) 4.94

-at 211Mhz:

(db/100m at 20?) 8.72

-at 300Mhz:

(db/100m at 20?) 10.71

-at 550 Mhz:

(db/100m at 20?) 15.12

-at 870 Mhz:

(db/100m at 20?) 19.40

-at 1000 Mhz:

(db/100m at 20?) 20.81

-at 1450 Mhz:

(db/100m at 20?) 25.59

-at 2150 Mhz:

(db/100m at 20?) 31.91
