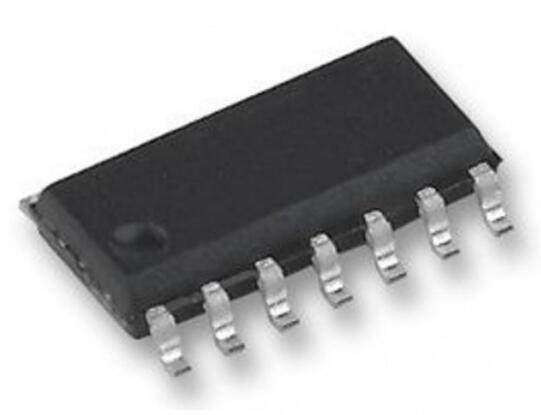

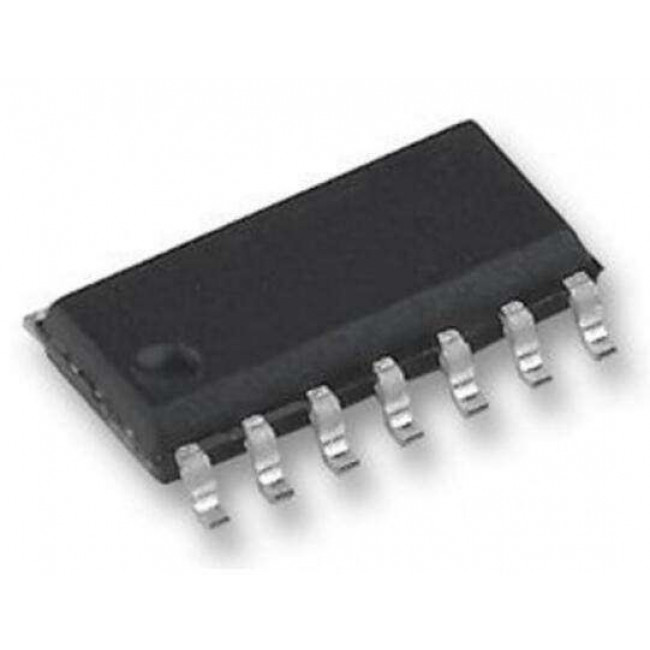

MC 34074VD IC OP SOP14

Mounting Type:Surface Mount

Brand:On Semiconductor

Package / Case:SOP-14

Package Type:SOIC

Power Supply Type:Single

Number of Channels per Chip:4

Pin Count:14

Typical Single Supply Voltage:3 > 44 V

Typical Gain Bandwidth Product:4.5MHz

Typical Slew Rate:13V/μs

Maximum Operating Frequency:1 MHz

Maximum Operating Temperature:+125 °C

Minimum Operating Temperature:-40 °C

Length:8.75mm

Dimensions:8.75 x 4 x 1.5mm

Height:1.5mm

Typical Input Voltage Noise Density:32nV/?Hz

Width:4mm

Rail to Rail:No

Typical Voltage Gain:100 dB
