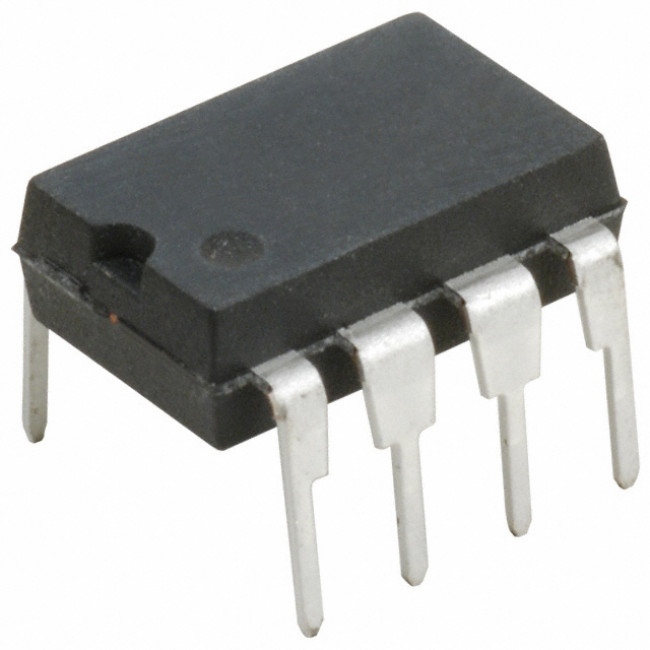

NJM 2068 IC

Product Category: Operational Amplifiers - Op Amps

RoHS: Details

Mounting Style: Through Hole

Package/Case: DIP-8

Number of Channels: 2 Channel

Supply Voltage - Max: +/- 18 V

GBP - Gain Bandwidth Product: 27 MHz

Output Current per Channel: -

SR - Slew Rate: 6 V/us

Vos - Input Offset Voltage: 3 mV

Supply Voltage - Min: +/- 4 V

Minimum Operating Temperature: - 20 C

Maximum Operating Temperature: + 75 C

Ib - Input Bias Current: 1 uA

Operating Supply Current: 8 mA

Shutdown: No Shutdown

CMRR - Common Mode Rejection Ratio: 80 dB

en - Input Voltage Noise Density: -

Series: NJM2068

Packaging: Tube

Amplifier Type: Low Noise Amplifier

Brand: Nisshinbo

Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V

Height: 3.4 mm

Length: 8.8 mm

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 4 V

Operating Supply Voltage: +/- 4 V to +/- 18 V

Pd - Power Dissipation: 500 mW (1/2 W)

Product: Operational Amplifiers

Product Type: Op Amps - Operational Amplifiers
