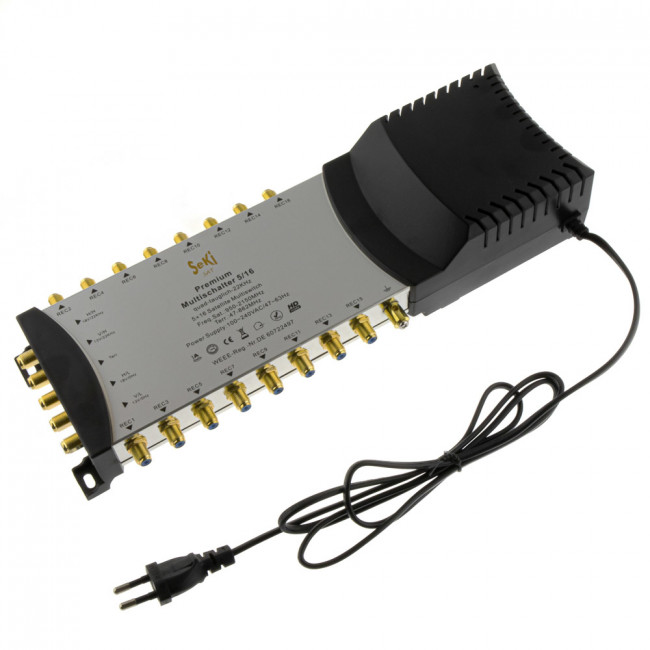

ΠΟΛΥΔΙΑΚΟΠΤΗΣ 5/16 SEKI

22 kHz Multiswitch with 5 inputs (4 x SAT, 1 x terr.) for the signal distribution to up to 16 receivers.



Inputs: 4 x SAT / 1 x terrestrial

Outputs: 16

Quad compatible: Yes

Frequency Range (Terr./SAT): 47~2150 MHz

Input attenuation SAT: -2 ~ -6 dB

Input attenuation terr.: -2 ~ 0 dB

Polarisation isolation SAT/terr.: 28-30 dB / 30 dB

Output level SAT/terr.: 100-101 dBµV / 83-85 dBµV

Return attenuation SAT/terr. IN: 10-14 dB / 11-12 dB

Return attenuation SAT/terr. OUT: 7-10 dB / 8-10 dB

Max. Current Pass to LNB: 1000 mA
