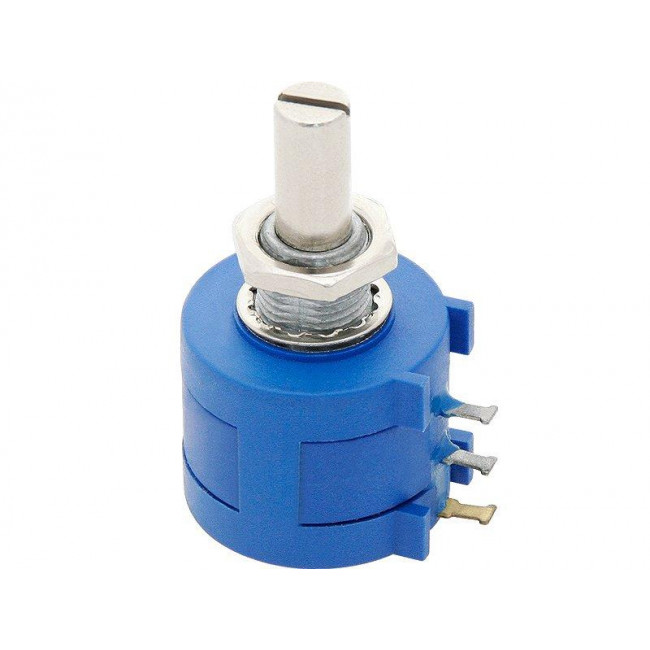

ΠΟΤΕΝΣΙΟΜΕΤΡΟ 50ΚΩ 10 ΣΤΡΟΦΩΝ 2W

ΠΟΤΕΝΣΙΟΜΕΤΡΟ 10 ΣΤΡΟΦΩΝ 50ΚΩ
• POTENTIOMETER, LINEAR, 50K, 2W, 5% • Track Resistance: 50K • Track Taper: Linear • No. of Turns: 10 • Shaft Diameter: 6.35mm • Shaft Length - Metric: 20.6mm • Resistance Tolerance: ± 5% • Voltage Rating: 20V • Power Rating: 2W • Potentiometer Mounting: Panel • No. of Gangs: 1 • Adjustment Type: Shaft • Body Diameter: 22.2mm • Dielectric Strength VAC: 1000V • Electrical Angular Rotation Tolerance +: 10° • Electrical Angular Rotation Tolerance -: -10° • External Length / Height: 19.1mm • Full Power Rating Temperature: 70°C • Insulation Resistance: 1000Mohm • Linearity, +: 0.2% • Linearity, -: -0.2% • Mechanical Angular Rotation Tolerance +: 10° • Mechanical Angular Rotation Tolerance -: -10° • Mounting Type: Panel • Operating Temperature Max: 125°C • Operating Temperature Min: -55°C • Operating Temperature Range: -55°C to +125°C • Proof Voltage: 1000V • Resistance: 50K • Resistor Element Material: Wirewound • Resolution %: 0.04% • Rotation Electrical Angle: 3600° • Rotation Mechanical Angle: 3600° • Rotational Life Cycles: 1000000 • Series: 534 • Tolerance +: 5%
