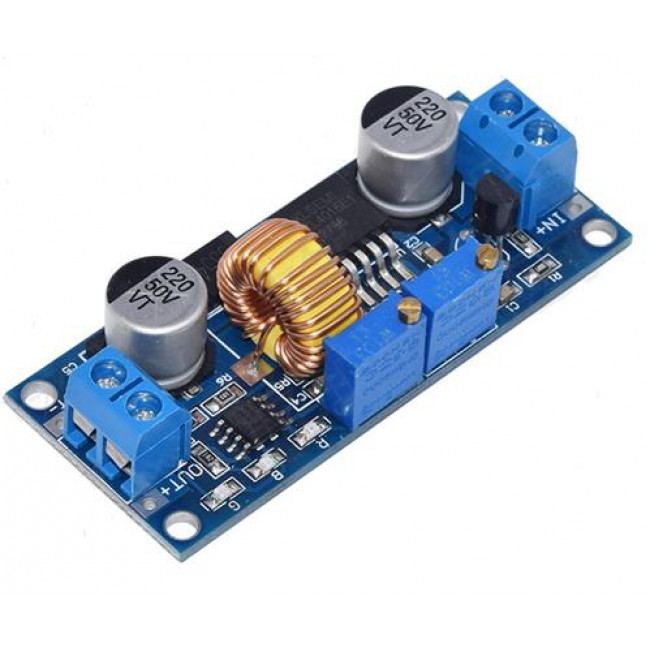

STEP DOWN MODULE IN 8-36V OUT 1.25-32V 3A ΡΥΘΜΙΖΟΜΕΝΟ
Κωδικός Προϊόντος: 44.07.0002

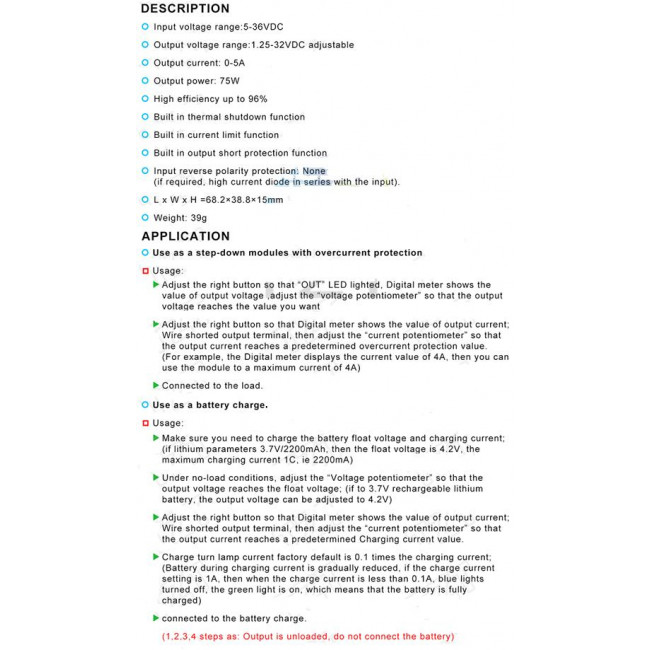

STEP DOWN CONVERTER ΜΕ ΡΥΘΜΙΣΗ V-A
Input Voltage Range:5~36VDC
Output Voltage Range: 1.25-32VDC adjustable
Output Current: 0-4A, recommended for use in 2.0A.
Output Power: 75W
Working Temperature: -40~+85 degrees
Operating Frequency: 180KHz
Efficiency: 96%(max)
Short Circuit Protection: Yes(limit current 8A).
Input Reverse Polarity Protection: None (if required, high current diode in series with the input).
Size: 68.2 x 38.8 x 15mm (L x W x H)
Note: The input voltage does not exceed 38V
STEP DOWN MODULE IN 8-36V OUT 1.25-32V 3A ΡΥΘΜΙΖΟΜΕΝΟ is available for purchase in increments of 1
Διαθεσιμότητα:Άμεσα Διαθέσιμο / 1-3 Εργάσιμες
Τιμή eshop (Με ΦΠΑ)
5,50€
