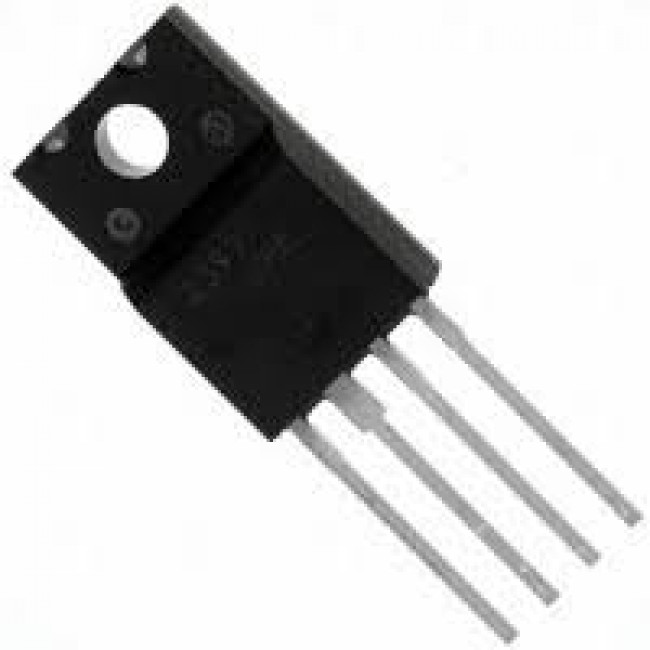

STP 20NM60FP MOSFET ΤΟ-220 ΠΛΑΣΤΙΚΟ

Encapsulation:TO-220F
Brand:STMicroelectronics
Channel Type:N
Maximum Continuous Drain Current:20 A
Maximum Drain Source Voltage:600 V
Maximum Drain Source Resistance:290 mΩ
Maximum Gate Threshold Voltage:5V
Minimum Gate Threshold Voltage:3V
Maximum Gate Source Voltage:-30 V, +30 V
Mounting Type:Through Hole
Transistor Configuration:Single
Pin Count:3
Channel Mode:Enhancement
Category:Power MOSFET
Maximum Power Dissipation:45 W
Height:9.3mm
Series:MDmesh
Maximum Operating Temperature:+150 °C
Length:10.4mm
Dimensions:10.4 x 4.6 x 9.3mm
Number of Elements per Chip:1
Transistor Material:Si
Typical Turn-On Delay Time:25 ns
Minimum Operating Temperature:-65 °C
Typical Gate Charge @ Vgs:39 nC @ 10 V
Typical Input Capacitance @ Vds:1500 pF@ 25 V
Typical Turn-Off Delay Time:42 ns
Width:4.6mm
