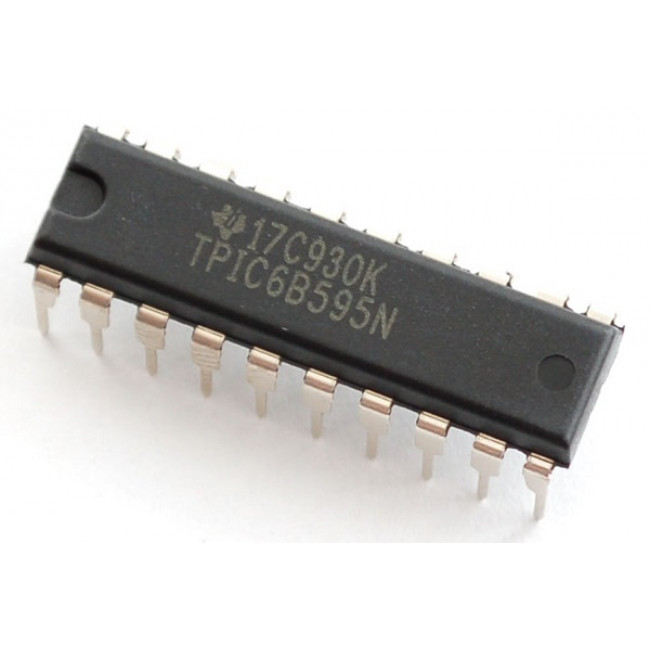

TPIC 6B595 IC DIP-20 SHIFT REGISTER 8-Bit HIGH-POWER

Shift Register 8-Bit High-Power - TPIC6B595



Simple shift register IC that can control high-voltage/high-current devices directly! Clock in data and latch it to control devices like relays, motors, high-current optical devices, and more! Each channel can sink 150mA continuous, 500mA max.

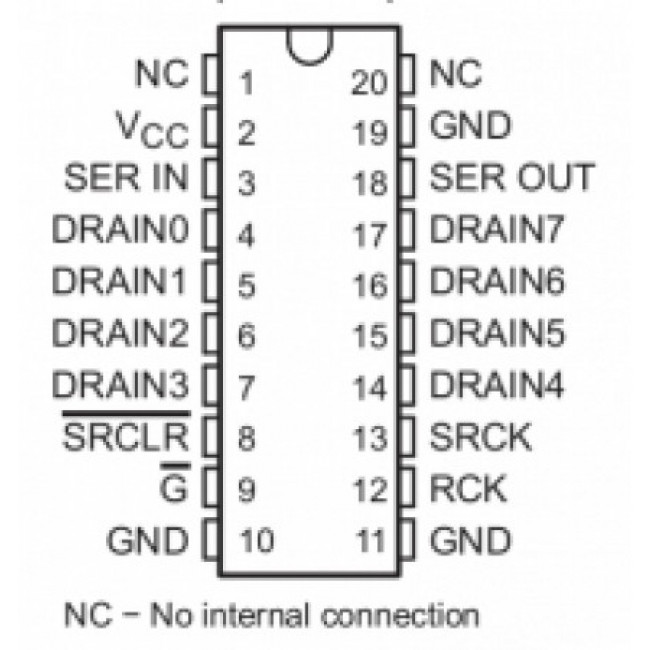

Θήκη: DIP20

Eight Power DMOS-Transistor Outputs of 150-mA Continuous Current

500-mA Typical Current-Limiting Capability

Output Clamp Voltage . . . 50 V

Devices Are Cascadable

Low Power Consumption
