Λεπτομέρειες

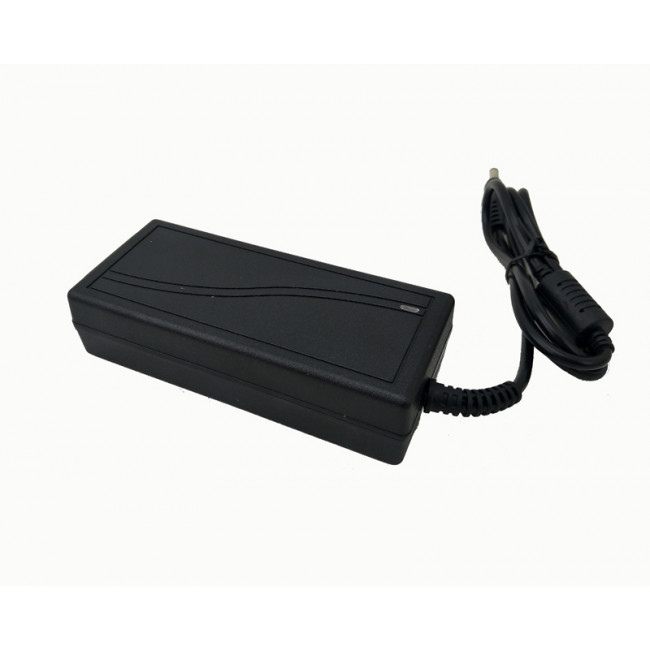

| Model: | CP0503-6A | |
| OUTPUT | -Output Current Range: | 0-6A |
| -DC Output Voltage: | 5V±10% | |
| -Wave and Noise: | 120mVp-p | |
| -DC Output Power: | 30W | |
| -Efficiency: | 85% | |
| -DC Voltage Adjustable Scope: | (at full load)?0.5% | |
| INPUT | -Voltage Range: | 85~264VAC 47-63Hz |
| -Input Current: | 0.14A/115V, 0.07A/230V | |
| -Leakage Current: | <1mA/ 240VAC | |
| -Inrush Current: | Cold start 20A/120VAC, 40A/230VAC | |
| PROTECTION | -Over-Load: | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| -Over-Voltage: | 105%—150% Rated Voltage, Protection type: Shut off | |
| -High-Temperature: |
RTH3>=65°C FAN ON<=55°C, FAN OFF>=80°C Cut Off Output(5~15V) |
|
| ENVIRONMENT | -Working Temperature: | -10°C~+50°C |
| -Working Humidity: | 20~90%RH | |
| -Store Temperature: | -20°C~+85°C | |
| -Store Humidity: | 10~95%RH | |
| -Temperature Co-Efficient: | ±0.03%°C(0~50°C) | |
| -Vibration: | 10~500Hz, 2G 10min./1cycle, Period for 60min, EACH AXES | |
| SAFETY | -Withstand Voltage: | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC |
| -Isolation Resistance: | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |
| STANDARD | -CE EMC Standard: |
EN55015:2013+A1:2015, EN61547:2009 EN61000-3-2:2014, EN61000-3-33:2013 |
| -CE LVD Standard: | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | |
| -ROHS Standard: |
IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. |
|
| OTHER | -Dimensions: | 70*39*31mm(L*W*H) |
| -Weight: | 0.058kg |
