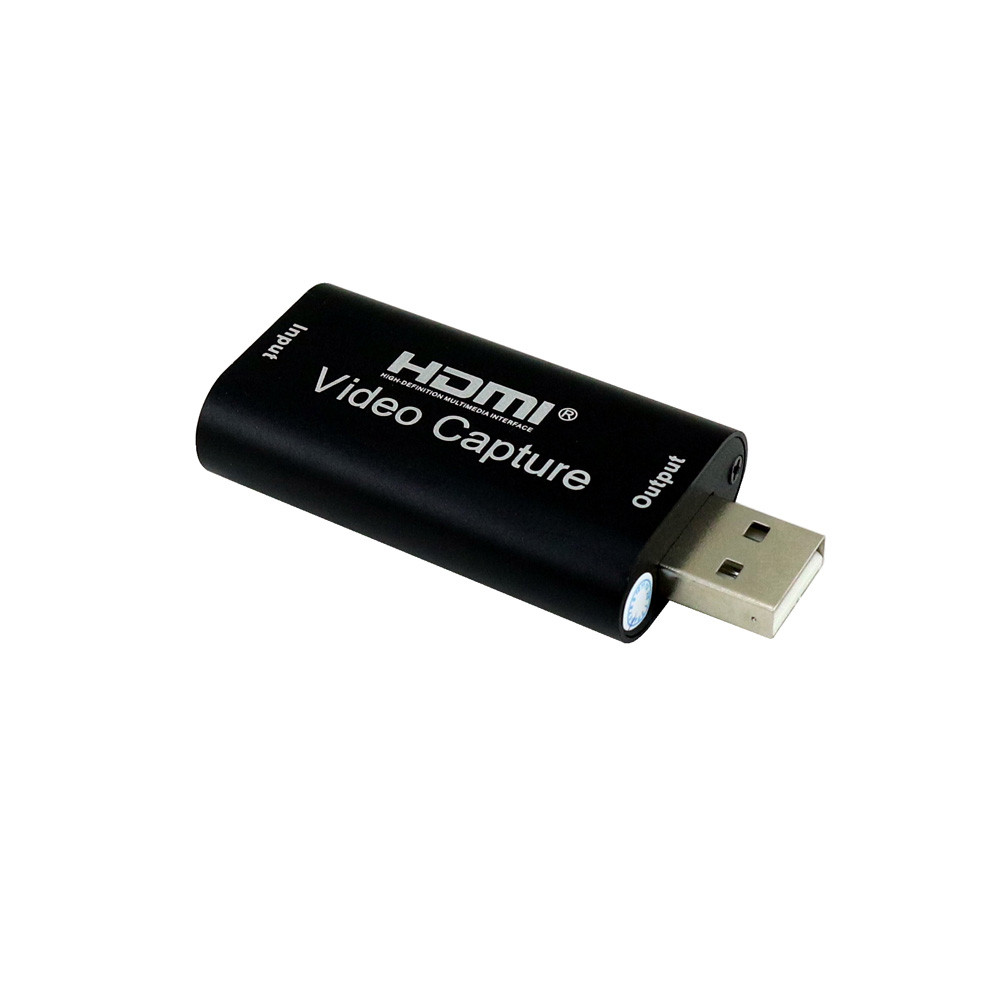

VIDEO CAPTURE HDMI TO USB 2.0

Κωδικός Προϊόντος: 62.00.0232
PS-C241 4K*2K HDMI to USB 2.0 VIDEO CAPTURE



Χωρίς εξωτερικό τροφοδοτικό, μικρό μέγεθος και εύκολο στη μεταφορά. Αυτή η κάρτα λήψης USB 2.0 μπορεί να συλλάβει βίντεο HDMI και ήχο HDMI ταυτόχρονα και μπορεί να μεταδώσει σήματα ήχου και βίντεο σε υπολογιστή ή smartphone για προεπισκόπηση και αποθήκευση.

Κατάλληλο για απόκτηση υψηλής ευκρίνειας, διδακτική εγγραφή, ιατρική απεικόνιση κ.λπ.

Προτεινόμενο πρόγραμμα το OBS STUDIO. Ειναι ελεύθερο στο διαδίκτυο.

Support maximum input resolution up to 4K.

Support maximum output resolution up to 1080P.

Support 8/10/12 bit color depth.

When using standard AWG26 cable, input transmission distance up to 15 meters (1080P and below resolution).

Support most acquisition software, such as VLC, OBS, Amcap, etc .

Support Windows, Android and MacOS.

Comply with USB video UVC specifications.

Complies with USB audio UAC specifications.

No external power supply, compact size and easy to carry.This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.



Connection operation:

1: Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI cable

2: Plug the USB male header of the USB capture card into the USB port of the computer 3: Acquisition operation steps (OBS): Open the software > add a new source > select 'video capture device' > set the screen size > Select 'Studio Mode' (dual window) > click 'Start Recording'



1. Add a new source and select 'Video Capture Device'

2. Set the screen size

3. Select 'Studio Mode' (dual window) and the above settings are completed.



Note: Computer hardware configuration requirements

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above

Storage: 4G RAM
VIDEO CAPTURE HDMI TO USB 2.0 is available for purchase in increments of 1

Διαθεσιμότητα:Άμεσα Διαθέσιμο / 1-3 Εργάσιμες

Άμεσα Διαθέσιμο / 1-3 εργάσιμες:

Ο χρόνος αποστολής εκτιμάται σε 1 έως 3 εργάσιμες ημέρες.


2 έως 5 εργάσιμες:

Ο χρόνος αποστολής εκτιμάται σε 2 έως 5 εργάσιμες ημέρες.


Κατόπιν Παραγγελίας έως 15 εργάσιμες:

Ο χρόνος αποστολής εκτιμάται σε περίπου 15 εργάσιμες ημέρες.


Κατόπιν Παραγγελίας έως 30 εργάσιμες:

Ο χρόνος αποστολής εκτιμάται σε περίπου 30 εργάσιμες ημέρες.

Μη διαθέσιμο:

Το προϊόν είναι μη διαθέσιμο με άγνωστο χρόνο παράδοσης.

Τιμή Καταστήματος: 19,90€
Τιμή eshop (Με ΦΠΑ) 11,20€
Από: 19,90€
44%
